Tee Connector Plate, 16mm x 50mm x 70mm x 2mm- Cardboard Box - 250 pcs

Timber

D-T-7050

5906675404028

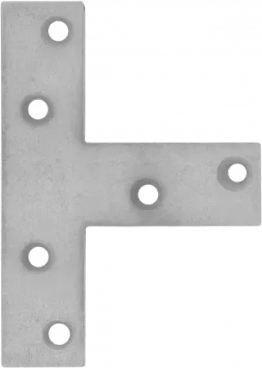

T-Shaped strap tie for connecting of wood construction elements

Define product parameters:

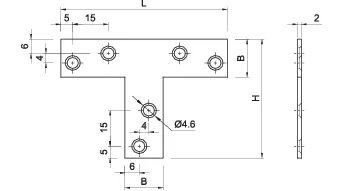

Dimensions

16x50

Width

70 mm

Thickness

2 mm

Packaging and quantity

Cardboard box 250 pieces

Weight and bulk packaging

Pallet Quantity
342.68 kg

This product has been withdrawn from sale.

Ask for the product

Contact with us and check out our terms of cooperation

Ask for the product

Contact with us and check out our terms of cooperation

Features

T-Shaped strap tie for connecting of wood construction elements

Connection of wooden contruction elements.
Profiled bores for flush fixing of the connector.
Steel sheet thickness: 2.0 mm.

Zinc electroplated surface for enhanced corrosion resistance.
Anti-corrosion coating thickness min. 8µm.

Timber

Timber

Plywood

Plywood

Chipboard

Chipboard

Approved surfaces

Wooden constructions

Wooden elements

Dimensions	Width	Thickness	Packaging and quantity	Index	EAN	Catalog price for PAC. net

Tee Connector Plate 16 x 50 x 70 x 2mm - Cardboard Box - 250 pcs

Tee Connector Plate 16 x 50 x 70 x 2mm - Cardboard Box - 250 pcs

Installation data
