  2. Self-Drilling Screws For Metal Sheets (12mm) 5.5 x 85mm with Washer T14, Zinc Plated - plastic bag - 100 pcs.

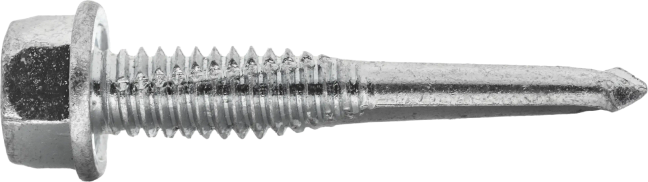

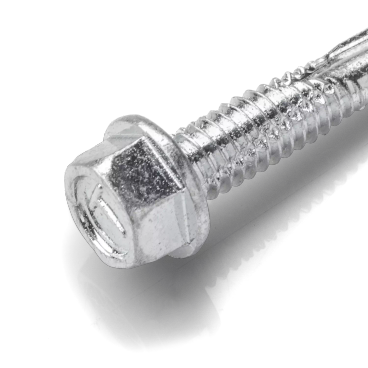

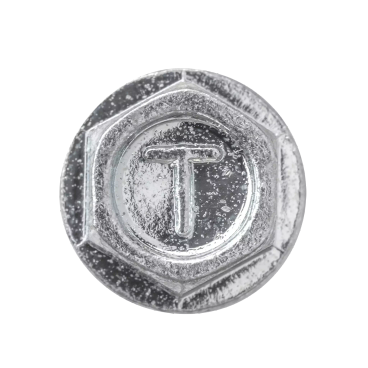

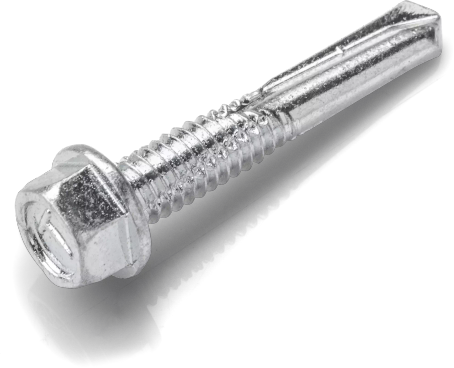

Self-Drilling Screws For Metal Sheets (12mm) 5.5 x 85mm with Washer T14, Zinc Plated - plastic bag - 100 pcs.

Steel
Outlet

ON-55085T-ZP-100

5391512825812

Rawlplug

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from hot rolled sections

Define product parameters:

Diameter
Washer
Length
Packaging and quantity

Features

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from hot rolled sections

  • Coloured polyester protective coating with a thickness of 45-50um (RAL,NCS RR) provides additional protection against corrosion. Various colours available to suit all metal sheet variants. UV stabilizers ensure colour quality over a long period of use.
  • Self vulcanizing EPDM washer. Temperature and UV resistant. The special shape of the washer ensures proper seating of the sealing material on the outer cladding material fixture which guarantees a proper seal.
  • The drill bit is designed to provide quick and trouble-free installation in the steel. Sharp point of the drill prevents movement of the surface of the fixture.
  • Hardened surface of the thread (flexible core). Corrosion resistant zinc coating of thickness not less than 12 um. The shape of the thread and its height is closely related to the intended use of self drilling fixing into steel construction.

Substrates

Structural steel

Structural steel

Approved surfaces

Applications

Pitched roofs

Drilling and screwing

Facades - thermal insulation systems

Ventilated facades

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support

Technical Support

Traditional training

Traditional training

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0203

1488-CPR-0530/Z

DoP-13/0203-ONP

KOT-0159/2018

020_UWB_0850_Z

KDWU-2018/0159-2

UKTA-22/6370

UKTA-DoP-22/6370-ON

Product card and catalogues

Choose product catalog:

Specification Design Guide

General catalogue - PDF
