Solid walls
R-HLX-06X35-I10-ZP
5906675557199
Define product parameters:
Diameter
Length
Coating
Thread
Packaging and quantity
Weight and bulk packaging
Pallet Quantity
768.00 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features

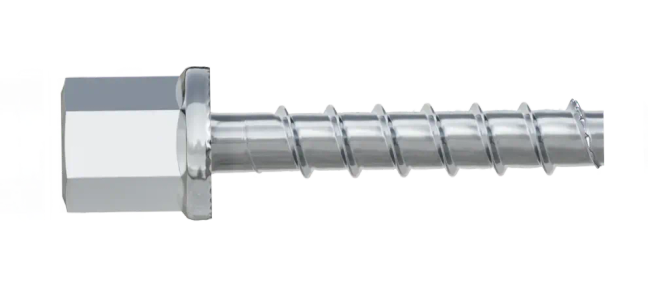

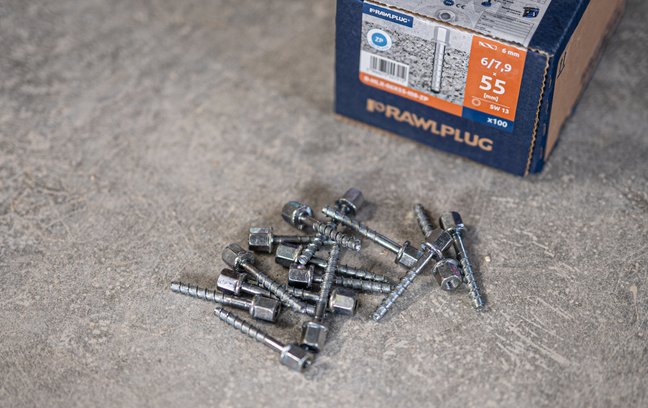

Hardened induction concrete screw with internal threaded head

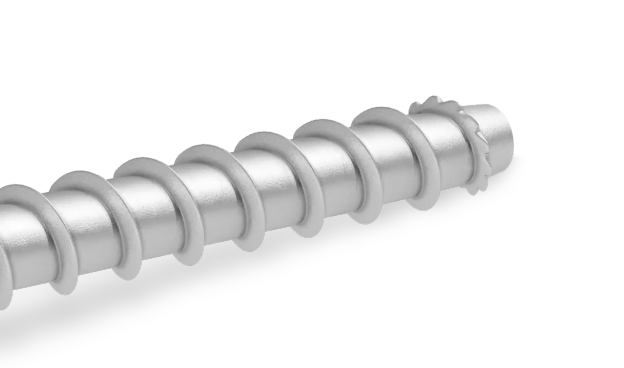

- The new thread geometry with additional cutting teeth ensures quick and easy installation, also in reinforced concrete C20/25 - C50/60.
- Fire resistance R30-R120.
- R-HLX concrete screws can be used in earthquake-prone zones - seismic category C1 and C2.

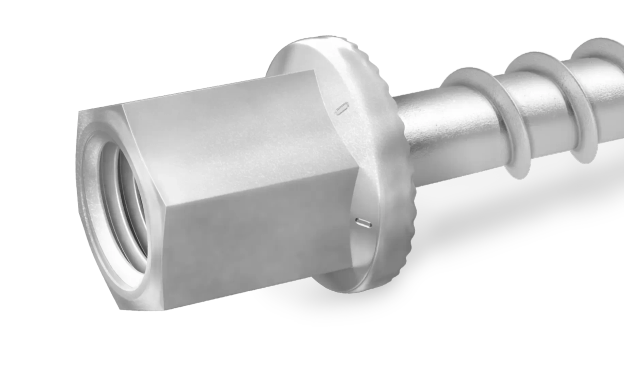

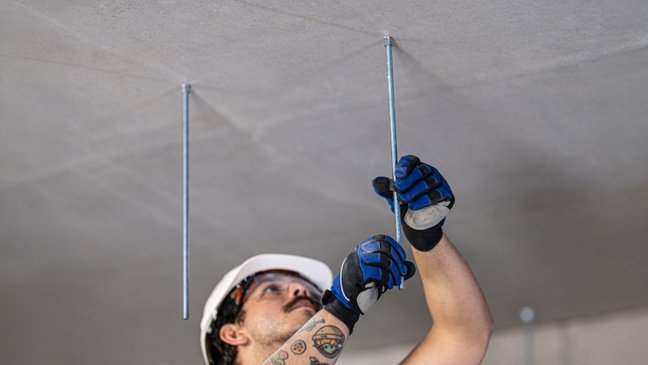

- The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point. This provides great flexibility.
- Possibility of installation near the edge of concrete and at short distances from adjacent screws.
- Polish production guarantees the highest precision of workmanship and its repeatability.
- Possibility of disassembly and repeated use after verifying thread wear with a tester.
- The highest parameters in cracked and uncracked concrete C20/25 - C50/60 confirmed in the ETA.
- Induction hardening ensures high surface hardness and high core impact strength.
Approved surfaces
Diameter | Length | Coating | Thread | Packaging and quantity | Index | EAN | Catalog price for PAC. net |
|---|
Installation manual
Installation step by step
1
Drill the hole with a hammer drill (1a) ) to the required depth according to the table
2
Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..

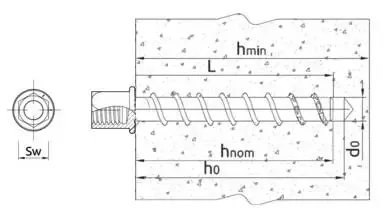

Installation data
