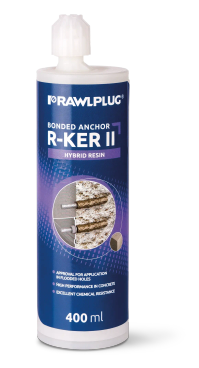

Hybrid bonded anchor R-KER-II standard - plastic cartouche - 400 ml

Solid walls

R-KER-II-400

5906675392103

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

Define product parameters:

Bonded anchors version
Packaging
Resin color
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    10.00 pcs.8.37 kg

  • Bulk pack

    10.00 pcs.8.37 kg

  • Pallet

    560.00 pcs.468.89 kg

Related products

R-STUDS Threaded Rod M20 x 260mm, Hex Head, A4 Stainless Steel - cardboard box - 5 pcs.

Threaded rod made of A4 stainless steel for use with bonded anchors

R-STUDS Threaded Rod M20 x 260mm, Hex Head, Class 8.8 - cardboard box - 5 pcs.

Threaded rod made of class 8.8 steel for use with bonded anchors

R-STUDS Threaded Rod M16 x 190mm, Hex Head, Class 8.8 - cardboard box - 10 pcs.

Threaded rod made of class 8.8 steel for use with bonded anchors

Manual gun for cartridges: 385/600ml(3:1), 280/300/310ml, 380-410ml (10:1), 4.5kN - cardboard box - 1 pc.

Professional manual gun for resin anchors in cartridges 385/600ml(3:1), 280/300/310ml, 380-410ml (10:1), 4,5kN

Manual gun for bonded anchor resin in cartridges 380-410ml (10:1) - plastic bag - 1 pc.

Professional manual gun for bonded anchors.

Rigid extension for mechanical cleaning with SDS+ drive R-BRUSH-TC - plastic bag - 1 pc.

Rigid extension with SDS+ for automatic cleaning of deep holes in a solid substrate

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Blow-through nozzle for cleaning of holes M14-M20 - plastic bag - 1 pc.

Tip for blowing holes R-NOZ-ADAPTER

Extension for R-BRUSH-TC with a handle - label - 1 pc.

Extension with handle for manual cleaning of deep holes in a solid substrate

R-BRUSH Steel brush for cleaning of deep holes, 16mm - plastic box - 1 pc.

Steel cleaning brush for cleaning drilled holes with the possibility of extension

Rawlplug SDS Plus Rebar Drill Bit 18 x 250 x 310mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

R-STUDS Threaded Rod M20 x 260mm, Hex Head, A4 Stainless Steel - cardboard box - 5 pcs.

Threaded rod made of A4 stainless steel for use with bonded anchors

R-STUDS Threaded Rod M20 x 260mm, Hex Head, Class 8.8 - cardboard box - 5 pcs.

Threaded rod made of class 8.8 steel for use with bonded anchors

R-STUDS Threaded Rod M16 x 190mm, Hex Head, Class 8.8 - cardboard box - 10 pcs.

Threaded rod made of class 8.8 steel for use with bonded anchors

Manual gun for cartridges: 385/600ml(3:1), 280/300/310ml, 380-410ml (10:1), 4.5kN - cardboard box - 1 pc.

Professional manual gun for resin anchors in cartridges 385/600ml(3:1), 280/300/310ml, 380-410ml (10:1), 4,5kN

Manual gun for bonded anchor resin in cartridges 380-410ml (10:1) - plastic bag - 1 pc.

Professional manual gun for bonded anchors.

Rigid extension for mechanical cleaning with SDS+ drive R-BRUSH-TC - plastic bag - 1 pc.

Rigid extension with SDS+ for automatic cleaning of deep holes in a solid substrate

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Blow-through nozzle for cleaning of holes M14-M20 - plastic bag - 1 pc.

Tip for blowing holes R-NOZ-ADAPTER

Extension for R-BRUSH-TC with a handle - label - 1 pc.

Extension with handle for manual cleaning of deep holes in a solid substrate

R-BRUSH Steel brush for cleaning of deep holes, 16mm - plastic box - 1 pc.

Steel cleaning brush for cleaning drilled holes with the possibility of extension

Rawlplug SDS Plus Rebar Drill Bit 18 x 250 x 310mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Features

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

  • Approved for use in non-cracked concrete (EAD 330499-02-0601), working life up to 100 years.
  • High parameter stability at elevated temperatures.
  • For faster curing winter version of the resin can be used.
  • No need for hole cleaning when using Dustlessdrill bit.
  • Very high load capacity.
  • Unique soft foil pack for less waste.
  • Effortless extrusion due to the patented self-opening system with manual or battery dispenser guns.
  • The available fire testing report presents the anchor's performance in fire conditions, facilitating the project approval process by investors and building supervision.

Product video

R-KER II bonded anchor – installation and application – how to use the product – Rawlplug tutorial

Rawlplug Deep Anchorage and post-installed rebar accessories system

Jakzamontowa_konstrukcj_stalow__

Montaz_kotwy_chemicznej_obciazanie_ukladu

Rawlplug_Academy_jaki_otwor_pod_kotwe_chemiczna

Jakprawid_owowykona_g__bokiewklejaniepr_t_wzbrojeniowych_

Rawlplug_Academy_bledy_montazu_kotwy_chemicznej

Jakprawid_owou_y_kotwychemicznej_

Czymjestkotwachemicznaijakjeju_ywa__

R_KEM_II_jak_zamontowa_bojler

Rawlplug_Academy_jak_wyczyscic_otwor_pod_kotwe_chemiczna

RKEM_II_Zapowiedz_jak_zamontowac_bojler_za_pomoca_kotwy_chemicznej

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Approved surfaces

Applications

Anchoring glued in with reinforcing bars

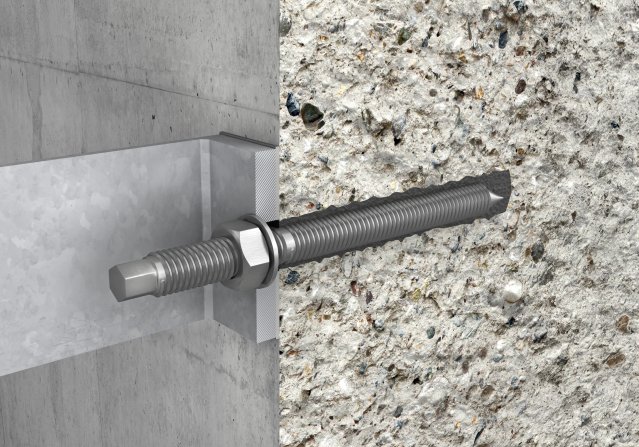

Anchoring glued in with threaded rods

Brackets

Concrete structures

Elevators and escalators

Roads and bridges

Steel structures

Ventilated facades

Substitutes

Hybrid bonded anchor R-KER-II standard - plastic cartouche - 300 ml

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

Hybrid bonded anchor R-KER-II standard - plastic cartouche - 300 ml

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

Services

Warranty

Warranty

Customer service

Customer service

BIM

BIM

Designing POS Displays

Designing POS Displays

Approvals and publications

Technical library and approvals

Choose document:

ETA-21/0242

1488-CPR-0945/W

DoP-21/0242-R-KER-II-12-05-2025

ETA-17/0874

1488-CPR-0748/W

DoP-17/0874 R-KER-II-S

UKTA-0836-22/6130

UK 0836-CPR-23/P6730

UKTA_DoP_226130_R_KERII

UKTA-0836-22/6128

UK 0836-CPR-23/P6760

UKTA-DoP-22/6130-R-KER-II

KOT-2018/0134

KDWU-2018-0134-2

Hygienic Certificate - R-KER II

VOC Emission Test Report - R-KER II

SDS_R-KER-II_01.03.2023

SDS_R-KERII_CFS_01.03.2023

Product card and catalogues

Choose product catalog:

Specification Design Guide

General catalogue - PDF

Leaflet R-KERII
