Universal
R-MBA-08250
5906675521985
Define product parameters:
Length
Packaging and quantity
Weight and bulk packaging
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features

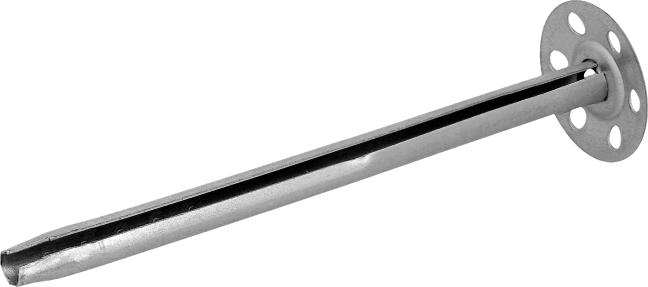

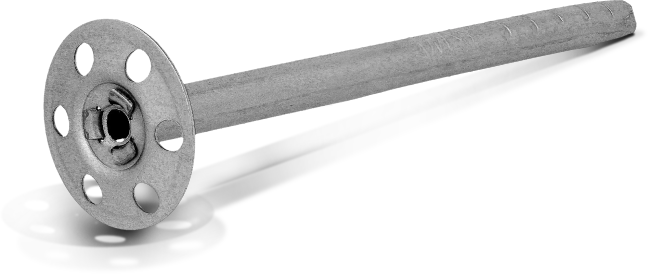

Fire-resistant metal insulation fixing
- Metal facade fixing, recommended for use when fire resistance (F120) is a requirement.
- Fast and simple hammer-set installation reduces working times.
- Accessory spreader plate, MKC-SS (85mm diameter) also available for installation of soft insulation materials such as mineral wool.
- Extensive dimensional range allows anchorage of insulation boards up to 250mm thick.
- Made of galvanized steel, resistant to damage and corrosion.
- For countersunk installation, we recommend using the R-KFS-90/20 cutter and the R-TFIX-CAP90-MW mineral wool cup.
Approved surfaces
Length | Packaging and quantity | Index | EAN | Catalog price for PAC. net |
|---|
Installation manual
Installation step by step
1
Drill hole to the required diameter and depth for rebar size being usee
2
Blow out dust at least 3 times with a hand pump.
3
Gently drive the steel dowel into the hole until the correct anchorage depth for the fastener is achieved. For soft substrates, use the MKC 85 mm steel washer.
4
Correctly installed steel facade fixing.
5
Cut the hole in insulation board.
6
Drill a hole of appropriate diameter and depth.
7
Clean drilled hole 3 times.
8
Gently drive the steel dowel into the hole until the correct anchorage depth for the fastener is achieved. For soft substrates, use the MKC 85 mm steel washer.
9
Insert cap into countersunk hole in insulation board following installation of the facade fixing.
10
Correctly installed steel facade fixing.
