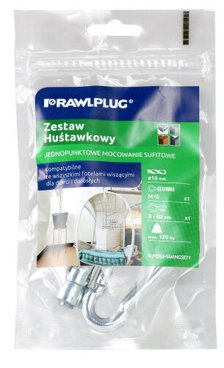

  2. Single-point ceiling swing set - plastic bag - 2 el.

Solid walls

R-PDS1-SWINGSET1

5906675418285

Rawlplug

Compatible with all hanging chairs for children and adults

Define product parameters:

Packaging and quantity
Weight and bulk packaging

  • Pallet Quantity

    139.39 kg

Features

Compatible with all hanging chairs for children and adults

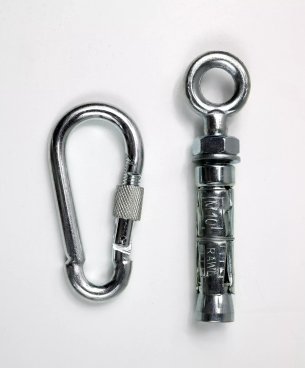

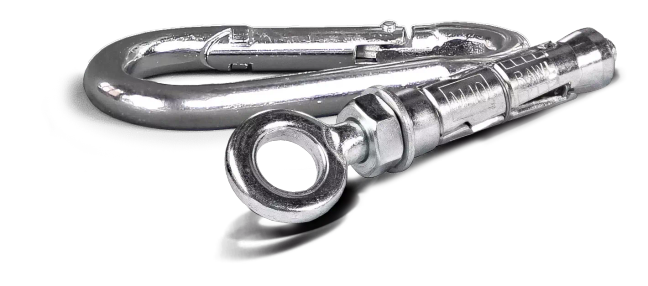

  • A set based on a segmented mechanical anchor with a closed hook.
  • Thanks to the unique design, the anchor achieves very high load capacities.
  • Can be used in reinforced concrete ceilings (tested in cracked concrete).
  • It has a National Technical Assessment.
  • Certified for concrete substrates and hollow bricks.
  • Classified as non-flammable A1.
  • The set consists entirely of steel elements (guarantee of long life).
  • Very simple and quick assembly.

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Concrete C20/25 (Use category A)

Concrete C20/25 (Use category A)

Concrete C20/25-C50/60

Concrete C20/25-C50/60

Reinforced concrete

Reinforced concrete

Hollow-core slab C20/25

Hollow-core slab C20/25

Hollow-core slab C30/37-C50/60

Hollow-core slab C30/37-C50/60

Solid clay brick ≥ 20MPa

Solid clay brick ≥ 20MPa

Hollow lightweight concrete block LAC 5 ≥ 5MPa

Hollow lightweight concrete block LAC 5 ≥ 5MPa

Masonry

Masonry

Concrete C12/15-C50/60

Concrete C12/15-C50/60

Approved surfaces

Swings

Gardening

Packaging and quantity
Index
EAN
Catalog price for SET. net

R-RBL Rawlbolt Shield Anchor, Eye Bolt, M6, ETA Option 1 Approved - cardboard box - 25 pcs.

R-RBL Rawlbolt Shield Anchor, Eye Bolt, M6, ETA Option 1 Approved - cardboard box - 25 pcs.

Installation manual

Installation step by step

1

Drill a hole in the substrate

2

Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..

3

Drive the pin in with a hammer until it is flush with the ground.

4

Tighten the anchor using a flat spanner.

5

Anchor correctly installed

6

Attach the carabiner to the anchor
