Solid walls
R-XPTIIIZP16150/50
5906675649566
Define product parameters:
Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging
Pallet Quantity
977.00 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features

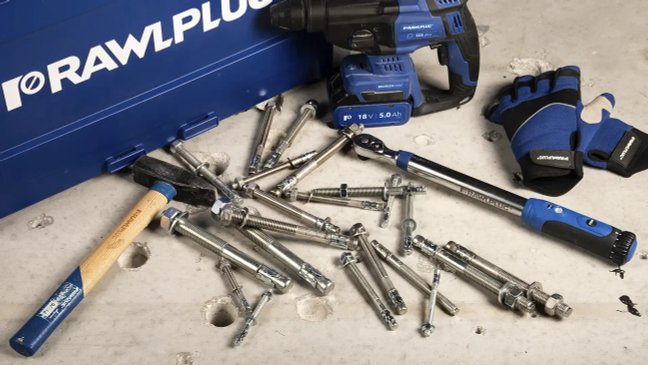

Sleeve anchor for uncracked concrete
- High performance in non-cracked concrete confirmed by ETA Option 7.
- Optimized cone shape, increasing the rake angle floor straps.
- The new shape of the expansion band with an innovative ring at the end of the band ensures a perfect connection between the anchor and the ground.
- Application specification in accordance with EAD 330232-02-0601 and included in ETA-23/0887.
- Identification mark of anchor length, facilitating control after installation.
- Steel expansion band with optimized design, providing secure anchoring.
- Variable anchoring depth provides the flexibility to choose the embedment depth according to your needs.
- Quick and comfortable assembly using an SDS punch.
- Polish production guarantees the highest precision of workmanship and its repeatability.
- Embedment depth markings help to ensure precise installation of the anchor.
Approved surfaces
Diameter | Length | Coating | Packaging and quantity | Index | EAN | Catalog price for PAC. net |
|---|
Installation manual
Installation step by step
1
Drill the hole to the appropriate depth
2
Remove the drill bits and clean the hole thoroughly using a pump
3
Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached
4
Insert the anchor into the hole through the fastening element and tap it with a hammer to the appropriate depth
5
Tighten to the recommended torque
6
The anchor is correctly installed
