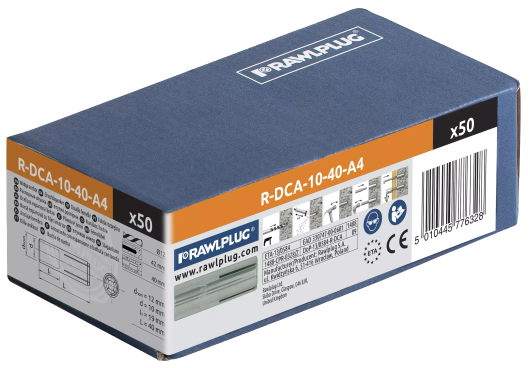

  2. Stainless wedge anchor with internal thread R-DCA-A4 M10 mm - cardboard box - 50 pcs.

Solid walls

R-DCA-10-40-A4

5010445776328

RawlplugRawl

Internally threaded stainless steel wedge anchor

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity
Weight and bulk packaging

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

R-DCA-ST-II Manual Setting Tool For Drop-In Achors With Grip, M10 - label - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

R-DCA-ST-II Manual Setting Tool For Drop-In Achors With Grip, M10 - label - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Features

Internally threaded stainless steel wedge anchor

  • Product is covered with European Technical Assessment for multi-point non-structural fixings.
  • Stainless steel material for high resistance to corrosion.
  • Easy to install by hammer action and manual setting tool.
  • Product was tested for construction fixing.
  • High performance in cracked and non-cracked concrete confirmed by ETA.
  • Product recommended for applications requiring fire resistance.
  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion.

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Length
Metric diameter
Coating
Packaging and quantity
Index
EAN
Catalog price for PAC. net

R-DCA Drop-In Anchor M10 x 40mm - cardboard box - 50 pcs.

R-DCL Lipped Drop-In Anchor M10 x 40mm - cardboard box - 50 pcs.

R-DCA Drop-In Anchor M10 x 40mm - cardboard box - 50 pcs.

R-DCL Lipped Drop-In Anchor M10 x 40mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill the hole and clean it up.

2

Blow out dust at least 4 times with a hand pump.

3

Insert the anchor into the hole and hammer it in until it is flush with the substrate.

4

By striking the special hammer with the hammer, expand the anchor in the hole.

5

Place the element to be fastened, insert the screw or threaded rod and tighten to the required torque.

Installation data

Technical library

(8)

Technical assessments(1)

ETA-13/0584

Download
Declarations(1)

DoP-13/0584 R-DCA-A4

Download
Certificates(1)

1488-CPR-0328/Z

Download
Documents(5)

KOT-2017/0165

Download

020_UWB_2994_W

Download

KDWU-2017-0165-R-DCA

Download

UKTA-22/6371

Download

UKTA-DoP-22/6371-R-DCA-A4

Download
