Solid walls
R-HLX-06X050-CS-ZF
5906675556475
Define product parameters:
Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging
Pallet Quantity
560.64 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features

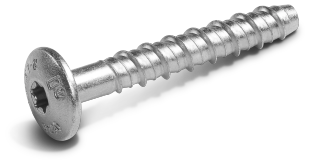

Induction hardened concrete screw anchor with countersunk head
- The new thread geometry with additional cutting teeth ensures quick and easy installation, also in reinforced concrete C20/25 - C50/60.
- R-HLX concrete screws can be used in earthquake-prone zones - seismic category C1 and C2.
- Special anti-corrosion zinc flake coating for increased corrosion resistance.
- Possibility of installation near the edge of concrete and at short distances from adjacent screws.
- Induction hardening ensures high surface hardness and high core impact strength.
- Different head types for any application.
- Possibility of disassembly and repeated use after verifying thread wear with a tester.
- The highest parameters in cracked and uncracked concrete C20/25 - C50/60 confirmed in the ETA.
- Reliable and simple installation.
Approved surfaces
Diameter | Length | Coating | Packaging and quantity | Index | EAN | Catalog price for PAC. net |
|---|
Installation manual
Installation step by step
1
Drill the hole with a hammer drill (1a) ) to the required depth according to the table
2
Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..
3
Screw the concrete screw into the hole using an impact wrench and a suitable impact bit. Tighten until the element is pressed to the surface. Installation using an impact wrench with a tangential impact. Finish screwing in when the screw head is in contact with the element/substrate being fastened. The screw head must not be damaged
4
Possibility to unscrew the fixed anchor to a maximum height of 10mm. In the adjustment process, the permissible thickness of the fastened elements (Tfix) must be observed
5
Screw the concrete screw into the hole with an impact wrench and a suitable impact socket. Tighten until the fixture is clamped to the substrate. Installation with any tangential impact wrench
6
Finish screwing in when the anchor presses the fastened element (substrate). The adjustment procedure can be performed twice
