  2. Zinc flake coated countersunk concrete screw anchor R-LX-CS-ZF 6x50 mm - cardboard box - 100 pcs.

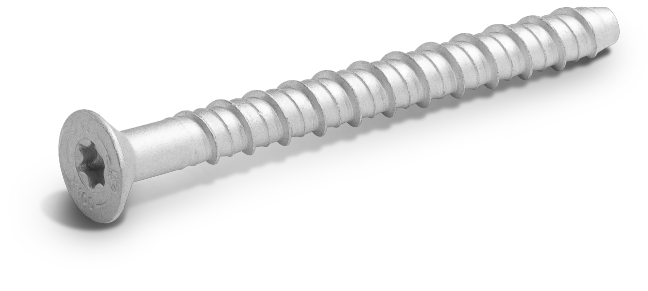

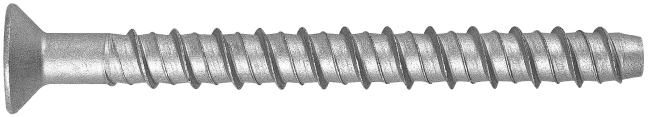

Zinc flake coated countersunk concrete screw anchor R-LX-CS-ZF 6x50 mm - cardboard box - 100 pcs.

Solid walls

R-LX-06X050-CS-ZF

5906675130231

Self-tapping concrete screwbolt

Define product parameters:

Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging

  • Pallet Quantity

    501.60 kg

Features

Self-tapping concrete screwbolt

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors.
  • Suitable for standard and reduced embedment depth.
  • Time-efficient installation through streamlined procedure - simply drill and drive.
  • Highest performance in both cracked and non-cracked concrete.
  • Unique design with patented threadform ensures high performance for relatively small hole diameter and low torque level during installation even in high strength concrete.
  • Special zinc flake coating for increased corrosion resistance.
  • Possibility of multiple use in high-strength concrete.
  • Allround product for any application.
  • Can be completely disassembled.

Product video

kotwa_mechaniczna_01

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Full list of variations

Diameter
Length
Coating
Packaging and quantity
Index
EAN
Catalog price for PAC. net

Substitutes

Concrete screw in zinc flake with countersunk head, induction hardened R-HLX-CS-ZF 6/7.9x50 mm - cardboard box - 100 pcs.

Induction hardened concrete screw anchor with countersunk head

Concrete screw in zinc flake with countersunk head, induction hardened R-HLX-CS-ZF 6/7.9x60 mm - cardboard box - 100 pcs.

Induction hardened concrete screw anchor with countersunk head

Concrete screw in zinc flake with countersunk head, induction hardened R-HLX-CS-ZF 6/7.9x50 mm - cardboard box - 100 pcs.

Induction hardened concrete screw anchor with countersunk head

Concrete screw in zinc flake with countersunk head, induction hardened R-HLX-CS-ZF 6/7.9x60 mm - cardboard box - 100 pcs.

Induction hardened concrete screw anchor with countersunk head

Services

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Can be unscrewed and screwed back in.

4

Tighten to the recommended torque.

5

The anchor is properly fixed in the concrete base.
