  1. Mainpage
  2. DRAM Metal Self-drill fixing for drywall 13x31 mm - blister - 4 pcs.

Plasterboard

B-DRA02

5906675022031

Koelner

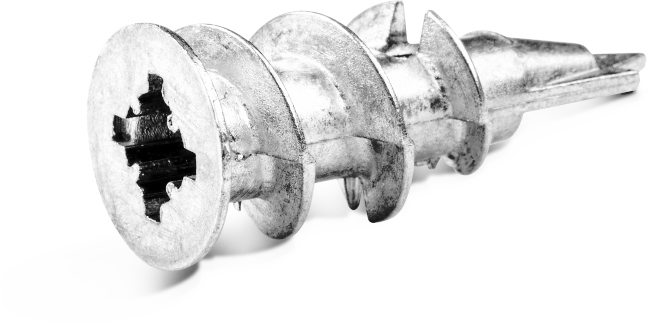

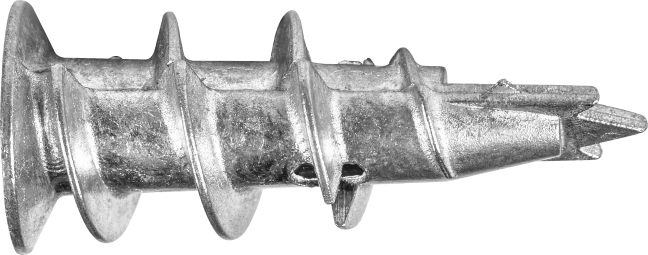

Self-drilling light-duty metal fixing for use in plasterboard sheets

Define product parameters:

Packaging and quantity
Weight and bulk packaging

  • Unit pack

    16.00 bl0.37 kg

  • Bulk pack

    16.00 bl0.42 kg

  • Pallet

    3744.00 bl98.28 kg

Related products

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

Chipboard and wood screw with hardened countersunk head 4,0x35 mm - cardboard box - 500 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

Chipboard and wood screw with hardened countersunk head 4,0x35 mm - cardboard box - 500 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Features

Self-drilling light-duty metal fixing for use in plasterboard sheets

  • Recommended for fire resistant aplication.
  • Flange prevents accidental push through in plasterboard.
  • Can be used in single and double thickness plasterboard.
  • Short length ideally suited for dry lined walls.
  • No drill required - simply pierce paper skin and screw home.
  • Ideal for use with either a power or manual Pozidriv screwdriver.
  • Must only be used with screws or hooks provided.
  • Recommended screw diameter: 3.5 - 4.2 mm.

Chipboard

Chipboard

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Bathroom accessories

Cabinets, brackets and wall brackets

Decor

Electrical Installations

Frames, profiles, slats

Mirrors

Packaging and quantity
Index
EAN
Catalog price for bl. net

Plastic toggle 10mm - cardboard box - 100 pcs.

DRA01 Nylon self-drill fixing for drywall 16x36mm - cardboard box - 100 pcs.

TAP-IT Fixing for plasterboard 10,5x30 mm - cardboard box - 100 pcs.

SM Interset M4x32 mm - cardboard box - 100 pcs.

Plastic toggle 10mm - cardboard box - 100 pcs.

DRA01 Nylon self-drill fixing for drywall 16x36mm - cardboard box - 100 pcs.

TAP-IT Fixing for plasterboard 10,5x30 mm - cardboard box - 100 pcs.

SM Interset M4x32 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Using a PZ2 screwdriver, push fixing point firmly into the board until thread engages.

2

Maintaining a firm pressure, screw in fixing until flush with the base material.

3

Place fixture in position, insert screw and tighten until secure.

Installation data
