  2. FIX Expansion plug with collar 10x50 mm with hex head screw 6,0x60 mm - blister - 2 pcs.

Solid walls
Outlet

B-FIX-K10/660

5906675029887

Koelner

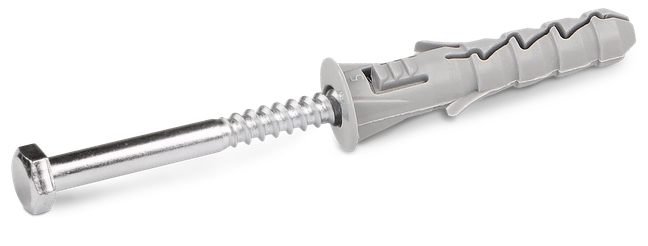

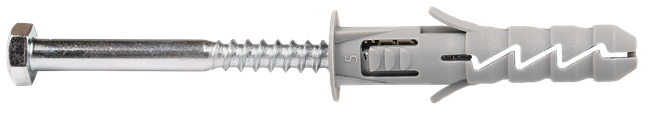

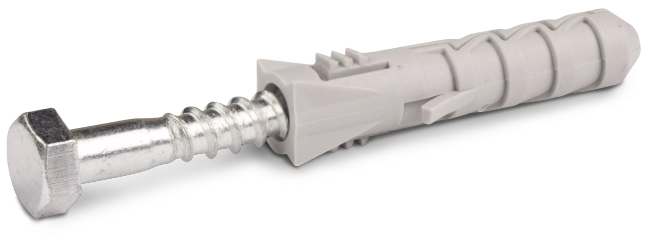

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

Define product parameters:

Diameter
Screw length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    12.00 bl0.34 kg

  • Bulk pack

    12.00 bl0.34 kg

  • Pallet

    1872.00 bl53.20 kg

This product has been withdrawn from sale.

Related products

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

  • Two-way expansion mechanism provides a strong anchorage in solid base materials.
  • Anti-rotation fins prevent spinning during tightening of the screw.
  • Engineered grip feature for extra holding power.
  • Wood screws with hexagon head according to DIN 571.
  • Frame fixing with countersunk plug and hexagonal head allows stable mounting of hard materials (e.g. steel)

Concrete

Concrete

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Aerated concrete

Aerated concrete

Approved surfaces

Bathroom accessories

Cabinets, brackets and wall brackets

Decor

Electrical Installations

Frames, profiles, slats

Letterboxes

Lighting

TV brackets

Diameter
Screw length
Packaging and quantity
Index
EAN
Catalog price for bl. net

4ALL Universal plug 10x50 mm with screw 6.0x60 mm - cardboard box - 25 pcs.

UNIPLUG Universal plug 10x50 mm with screw 6x60 mm - blister - 6 pcs.

UNO® Universal plug 10x36 mm with screw 5,0x45 mm - cardboard box - 100 pcs.

4ALL Universal plug 10x50 mm with screw 6.0x60 mm - cardboard box - 25 pcs.

UNIPLUG Universal plug 10x50 mm with screw 6x60 mm - blister - 6 pcs.

UNO® Universal plug 10x36 mm with screw 5,0x45 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill the hole to the appropriate depth

2

Insert FIX plug into the hole and tap home.

3

Attach the fixture and tighten the screw to the required tightening torque.

4

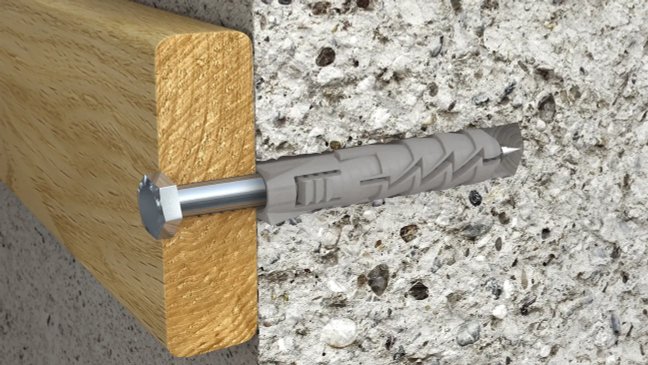

The plug is correctly installed in the concrete base.
