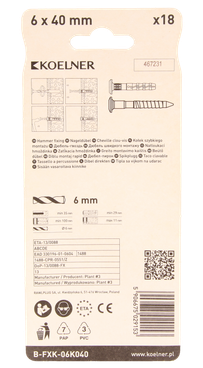

  2. FX-K Hammer-in fixing with mushroom head 6x40 mm - blister - 18 pcs.

Solid walls

B-FXK-06K040

5906675029153

Koelner

The hammer fixing for fast, simple, cost-effective installations.

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    6.00 bl0.61 kg

  • Bulk pack

    6.00 bl0.61 kg

  • Pallet

    936.00 bl94.85 kg

Related products

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 50 x 110mm, PGM Approved - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Cylindrical drill bits for concrete Impactor 6x100 mm - plastic box - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 50 x 110mm, PGM Approved - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Cylindrical drill bits for concrete Impactor 6x100 mm - plastic box - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

The hammer fixing for fast, simple, cost-effective installations.

  • The extensive range of product lengths and diameters with countersunk head type ensures availability of the correct fixing for every scenario.
  • Hammer installation reduces installation time and enables efficient series installation.
  • Mushroom head.
  • The combination of a PZ recess and a helical thread facilitates disassembly and allows the nail to be removed when necessary.
  • Polypropylene material assures resistance to water and most chemical compounds.
  • Designed for through installation.
  • Cylinder head prevents plug slipping into over-sized holes and allows fix thin elements.

Concrete

Concrete

Aerated concrete

Aerated concrete

Solid brick

Solid brick

Lightweight concrete block

Lightweight concrete block

Solid sand-lime brick

Solid sand-lime brick

Hollow lightweight concrete block

Hollow lightweight concrete block

Hollow sand-lime brick

Hollow sand-lime brick

Approved surfaces

Electrical Installations

Frames, profiles, slats

Plasterboard systems

Plinths and finishing profiles

Sanitary and gas installations

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for bl. net

4ALL Universal plug 6x30 mm with screw 4.5x40 mm - cardboard box - 50 pcs.

UNIPLUG Universal plug 6x30 mm with screw 4,5x40 mm - blister - 12 pcs.

FIX Expansion plug 6x30 mm with screw 4,0x35 mm - cardboard box - 200 pcs.

UNO® Universal plug 6x28 mm with screw 4,0x30 mm - cardboard box - 100 pcs.

4ALL Universal plug 6x30 mm with screw 4.5x40 mm - cardboard box - 50 pcs.

UNIPLUG Universal plug 6x30 mm with screw 4,5x40 mm - blister - 12 pcs.

FIX Expansion plug 6x30 mm with screw 4,0x35 mm - cardboard box - 200 pcs.

UNO® Universal plug 6x28 mm with screw 4,0x30 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Place the screw in the sleeve through the fastened element.

4

Hammer the nail into the plastic sleeve until fixing is secure and flush with the fixture.

5

Pin is correctly fastened.

Installation data

Technical library

(6)

Technical assessments(2)

ETA-13/0088

Download

KOT-2019/0762

Download
Declarations(2)

DoP-13/0088 FX

Download

KDWU-2019-0762-FX

Download
Certificates(2)

1488-CPR-0551_Z

Download

020_UWB_1264_Z_FX

Download

Catalogues and product cards

(2)

Product cards(1)

Product cart

Download
Catalogues(1)

Catalogue

Download
