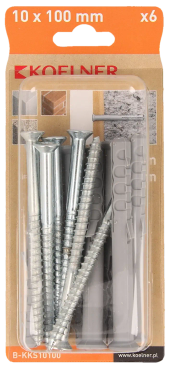

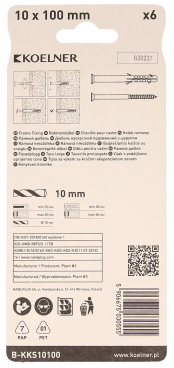

  2. KKS Frame fixing with short expansion zone 10x100 mm with countersunk head screw PZ - blister - 6 pcs.

Solid walls

B-KKS10100

5906675030555

Koelner

Frame fixing with a short expansion zone for fixing in concrete and solid brick

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    6.00 bl1.14 kg

  • Bulk pack

    6.00 bl1.14 kg

  • Pallet

    936.00 bl177.06 kg

Features

Frame fixing with a short expansion zone for fixing in concrete and solid brick

  • Special design with anti-rotation lugs.
  • Zig-zag design ensures enhanced expansion.
  • No marking out required - drill straight through the frame.
  • Tough nylon sleeve prevents frame distortion during tightening.
  • Durable, high quality PA6 grade nylon plug for extended fixing life.

Concrete

Concrete

Brick

Brick

Approved surfaces

Doors and windows

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for bl. net

KKD Frame fixing with short expansion zone 10x100 mm with hex head screw - blister - 6 pcs.

R-FF1 Nylon Frame Fixing 10 x 100mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 25 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x100 mm - cardboard box - 25 pcs.

KKD Frame fixing with short expansion zone 10x100 mm with hex head screw - blister - 6 pcs.

R-FF1 Nylon Frame Fixing 10 x 100mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 25 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x100 mm - cardboard box - 25 pcs.

Installation manual

Installation step by step

1

Drill hole to the required diameter and depth for stud size being used.

2

Blow out dust at least 4 times with a hand pump.

3

Insert the sleeve into the hole through the fastener and tap it in with a hammer to the appropriate depth.

4

Tighten the screw.

5

Screw correctly installed in concrete substrate.

Installation data

Technical library

(3)

Technical assessments(1)

KOT-2018/0160

Download
Certificates(1)

020_UWB_1164Z_kkskkdkdskd

Download
Documents(1)

KDWU_2018_0160_KKS_2025_09_18_PL

Download

Catalogues and product cards

(2)

Product cards(1)

Product cart

Download
Catalogues(1)

Catalogue

Download
