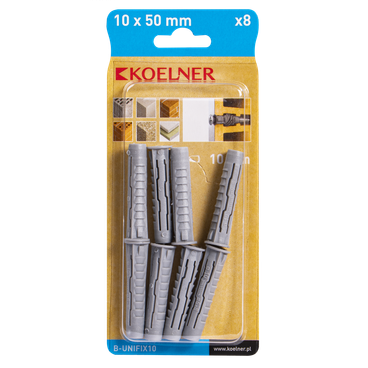

  2. UNIPLUG Universal plug 10x50 mm - blister - 8 pcs.

Universal

B-UNIFIX10

5906675333816

Koelner

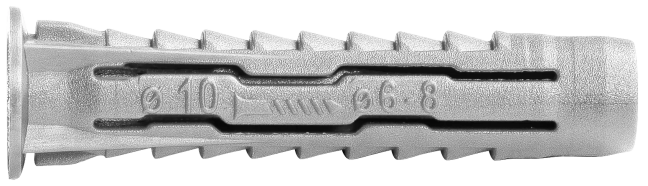

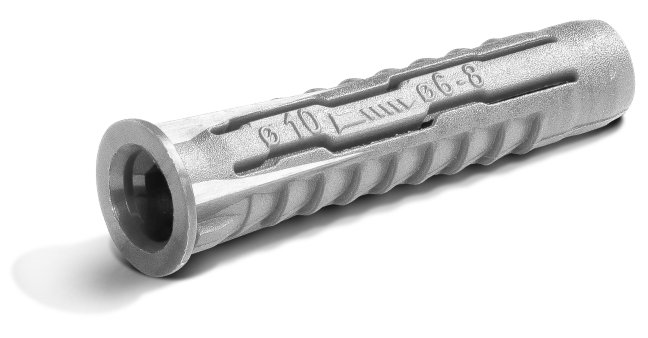

Universal nylon expansion plug for all types of substrates

Define product parameters:

Diameter
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    12.00 bl0.55 kg

  • Bulk pack

    12.00 bl0.55 kg

  • Pallet

    1872.00 bl85.80 kg

Related products

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

TORSION Pozidriv PZ1 PZ2 PZ33 bit set - blister - 3 el.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

TORSION Pozidriv PZ1 PZ2 PZ33 bit set - blister - 3 el.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

Universal nylon expansion plug for all types of substrates

  • Unique internal design provides positive grip for screws.
  • Anti-rotational lugs promote grip in wide range of substrates including soft masonry materials.
  • Rib detail at plug head provides added grip.
  • Expanding section designed to collapse in hollow materials and provide positive grip behind surfaces.
  • The unique four-way expansion method of the plug allows application in any type of substrate.
  • Solid head design provides strength whilst plug is installed.

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Vertically-perforated clay block

Vertically-perforated clay block

Aerated concrete

Aerated concrete

Plasterboard

Plasterboard

Hollow sand-lime brick

Hollow sand-lime brick

Approved surfaces

Bathroom accessories

Cabinets, brackets and wall brackets

Electrical Installations

Letterboxes

Lighting

TV brackets

Kitchen cabinets

Diameter
Packaging and quantity
Index
EAN
Catalog price for bl. net

4ALL Universal Plugs 10 x 50mm - cardboard box - 50 pcs.

FIX Expansion plug 10x50 mm - cardboard box - 100 pcs.

UNO® Universal plug 10x36 mm - cardboard box - 50 pcs.

4ALL Universal Plugs 10 x 50mm - cardboard box - 50 pcs.

FIX Expansion plug 10x50 mm - cardboard box - 100 pcs.

UNO® Universal plug 10x36 mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole in the ground

2

Insert the pin into the hole and press down.

3

Maintaining constant pressure, tighten the fastener flush with the base material.

4

Tighten the pin until it stops.

5

Installed product.

Technical library

(3)

Technical assessments(1)

KOT-2022/1916

Download
Declarations(1)

KDWU-2022-1916-1-UNIPLUG

Download
Documents(1)

1488_CPR_1092_PL

Download

Catalogues and product cards

(2)

Product cards(1)

Product card

Download
Catalogues(1)

Catalogue

Download
