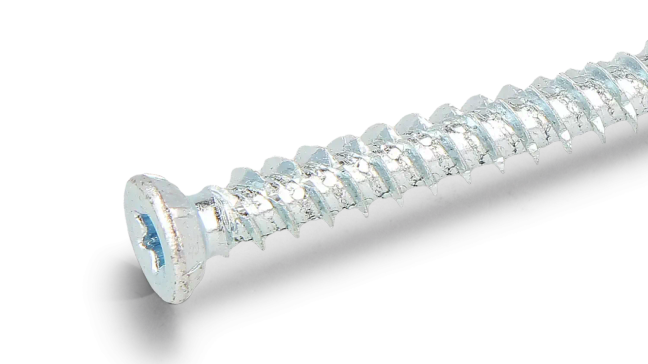

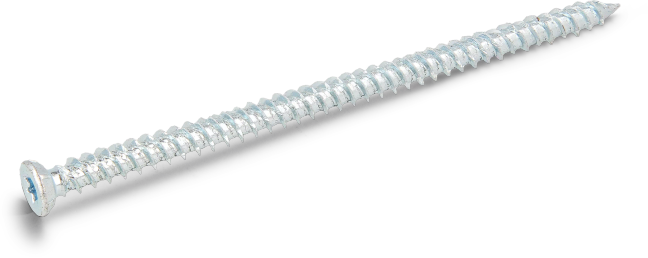

  2. WHO Concrete frame screws 7,5x72 mm - blister - 6 pcs.

Solid walls

B-WHO75072

5906675031606

Koelner

Special frame screw for window and door installation

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    12.00 bl1.34 kg

  • Bulk pack

    12.00 bl1.34 kg

  • Pallet

    1872.00 bl208.73 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

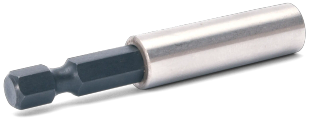

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Brickdrill SDS PLUS non-impact drill bits 6.0x260 m - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Torsion Torx30 T30 bits 25 mm - blister - 3 pcs.

Brickdrill SDS PLUS non-impact drill bits 6.0x260 m - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Features

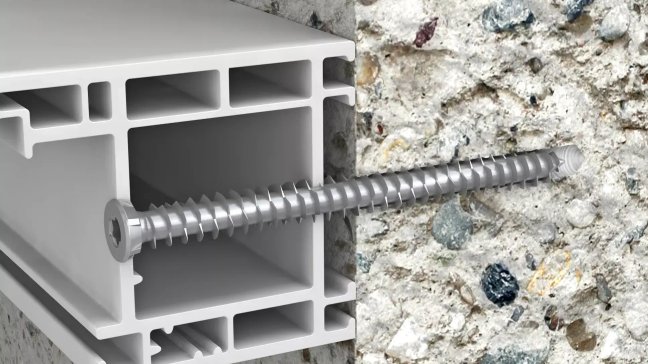

Special frame screw for window and door installation

  • Flat head for flush installation with the window and door frames.
  • Expansion-free fixing imposes less stress on substrate during installation.
  • High load resistances from a relatively small hole diameter.
  • Easily removed for temporary works.

Concrete

Concrete

Solid brick

Solid brick

Hollow brick

Hollow brick

Aerated concrete

Aerated concrete

Approved surfaces

Doors and windows

Formwork

Frames, profiles, slats

Gates

Suspended Ceilings

Wooden constructions

Length
Packaging and quantity
Index
EAN
Catalog price for bl. net

R-FF1 Nylon Frame Fixing 8 x 80mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

Nylon frame fixing with collar hex head - zinc plated R-FF1 10x100 mm - cardboard box - 25 pcs.

WHS Concrete frame screws 7,5x72 mm - cardboard box - 100 pcs.

R-FF1 Nylon Frame Fixing 8 x 80mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

Nylon frame fixing with collar hex head - zinc plated R-FF1 10x100 mm - cardboard box - 25 pcs.

WHS Concrete frame screws 7,5x72 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill a hole of the appropriate diameter and depth into the concrete base.

2

Blow out the dust at least 4 times with the hand pump.

3

Tighten the screw with a screwdriver with adjustable torque in the concrete substrate.

4

Correctly fixed screw to the concrete base.

Technical library

(3)

Technical assessments(1)

ITB_KOT_2017_0169wydanie4

Download
Declarations(1)

KDWU_2017_0169_4_WHO_3_

Download
Certificates(1)

020-UWB-1123/Z-WHO-WHS

Download

Catalogues and product cards

(1)

Catalogues(1)

Catalogue

Download
