  1. Mainpage

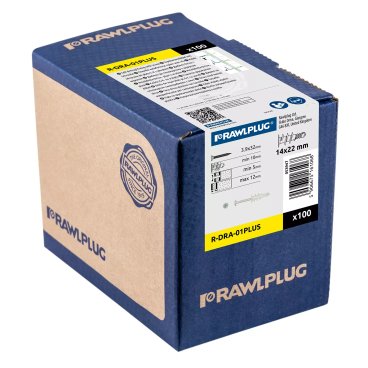

  2. DRA-01 Nylon Self-Drilling Fixings With Screws 3.9 x 32mm - cardboard box - 100 pcs.

Plasterboard

DRA-01PLUS

5906675194127

Koelner

Perfect for installation light elements to plaster substrates

Define product parameters:

Diameter
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.0.45 kg

  • Bulk pack

    1600.00 pcs.7.55 kg

  • Pallet

    38400.00 pcs.181.18 kg

Related products

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Bit set 25 mm PZ1 PZ2, PZ3, PH1, PH2, PH3, T20, T25, T30 + adapter 60 mm - blister - 1 pc.

Torsion Pozidriv2 PZ2 bits 25 mm - blister - 3 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Features

Perfect for installation light elements to plaster substrates

  • Flange prevents accidental push through in plasterboard.
  • Can be used in single and double thickness plasterboard.
  • Short length ideally suited for dry lined walls.
  • Very durable nylon material with fibre glass and special drilling point guarantees fast installation.
  • Installation with a standard screwdriver means that no special tools are necessary.
  • Recommended screw diameter: 3.5 - 4.2 mm.
  • Must only be used with screws provided.

Plasterboard

Plasterboard

Gypsum fibreboards

Gypsum fibreboards

Approved surfaces

Cabinets, brackets and wall brackets

Decor

Lighting

Mirrors

Bathroom accessories

Diameter
Packaging and quantity
Index
EAN
Catalog price for pack. net

Plastic toggle GL fi 8 mm with screw - cardboard box - 100 pcs.

Plastic toggle GL fi 10 mm with screw - cardboard box - 50 pcs.

DRAM Metal Self-drill fixing for drywall 13x31 mm with screw 4,2x32 mm - cardboard box - 100 pcs.

TAP-IT Fixing for plasterboard 10,5x30 mm with screw 4x40 mm - cardboard box - 100 pcs.

SM Interset M4x32 mm - cardboard box - 100 pcs.

Plastic toggle GL fi 8 mm with screw - cardboard box - 100 pcs.

Plastic toggle GL fi 10 mm with screw - cardboard box - 50 pcs.

DRAM Metal Self-drill fixing for drywall 13x31 mm with screw 4,2x32 mm - cardboard box - 100 pcs.

TAP-IT Fixing for plasterboard 10,5x30 mm with screw 4x40 mm - cardboard box - 100 pcs.

SM Interset M4x32 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Using a PZ2 screwdriver, push fixing point firmly into the board until thread engages.

2

Maintaining a firm pressure, screw in fixing until flush with the base material.

3

Place fixture in position, insert screw and tighten until secure.

4

Maintaining a firm pressure, screw in fixing until flush with the base material.

5

Screw properly fastened.
