  2. FIX Expansion plug 14x70 mm with hex head screw 10x80 mm - cardboard box - 25 pcs.

FIX Expansion plug 14x70 mm with hex head screw 10x80 mm - cardboard box - 25 pcs.

Solid walls

FIX-14/80

5906675112107

Koelner

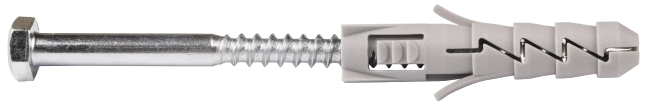

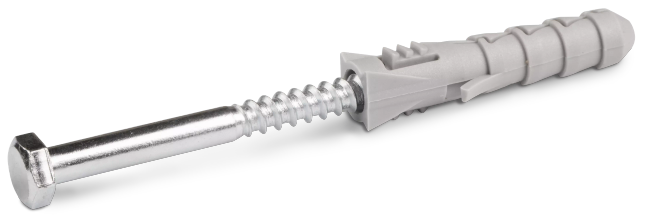

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

Define product parameters:

Diameter
Screw length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    25.00 pcs.1.24 kg

  • Bulk pack

    300.00 pcs.15.20 kg

  • Pallet

    7200.00 pcs.364.68 kg

Related products

RT-IS Impact Socket CR-MO -17 x 18mm - plastic hanger - 1 pcs.

Extended impact socket

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

RT-IS Impact Socket CR-MO -17 x 18mm - plastic hanger - 1 pcs.

Extended impact socket

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Features

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

  • Two-way expansion mechanism provides a strong anchorage in solid base materials.
  • Anti-rotation fins prevent spinning during tightening of the screw.
  • Hex head screw for many application scenarios.
  • Engineered grip feature for extra holding power.

Substrates

Concrete

Concrete

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Aerated concrete

Aerated concrete

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Electrical Installations

Frames, profiles, slats

Letterboxes

Lighting

Services

Customized packaging

Customized packaging

Designing POS Displays

Designing POS Displays

Technical Support

Technical Support

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Insert FIX plug into the hole and tap home.

4

Attach the fixture and tighten the screw to the required tightening torque.

5

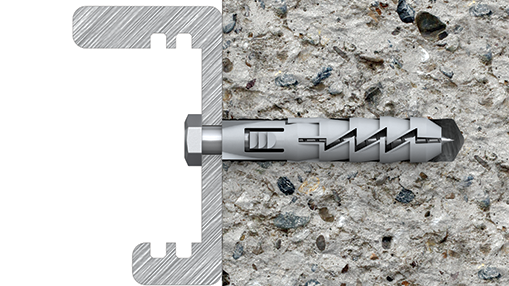

The plug is correctly installed in the concrete base.

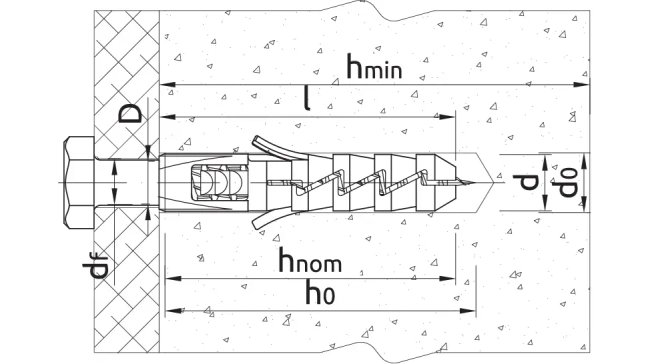

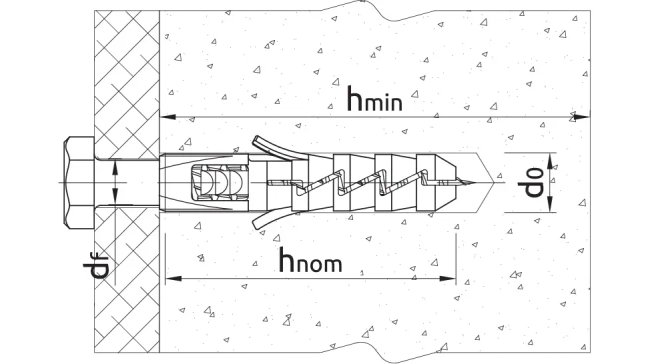

Installation data
