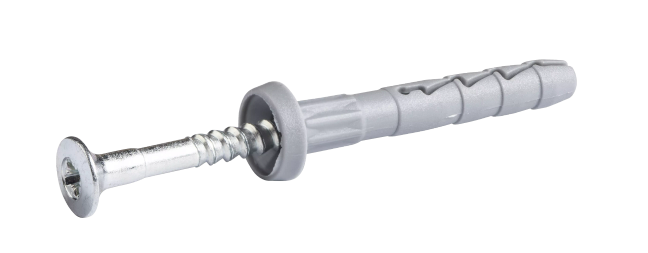

  2. FX-C Hammer-in fixing with cylindrical head 5x35 mm - cardboard box - 200 pcs.

Solid walls

FX-05C035

5906675001067

Koelner

The hammer in fixing for fast, simple, cost-effective installations

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    200.00 pcs.0.61 kg

  • Bulk pack

    2400.00 pcs.7.58 kg

  • Pallet

    57600.00 pcs.181.94 kg

Related products

Rebardrill SDS Plus drill bits 5x50x110 mm - plastic hanger - 1 pc.

Cylindrical drill bits for concrete Impactor 5x85 mm - plastic box - 1 pc.

Aggressor SDS Plus drill bits 5x50x110 mm - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Rebardrill SDS Plus drill bits 5x50x110 mm - plastic hanger - 1 pc.

Cylindrical drill bits for concrete Impactor 5x85 mm - plastic box - 1 pc.

Aggressor SDS Plus drill bits 5x50x110 mm - plastic hanger - 1 pc.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

The hammer in fixing for fast, simple, cost-effective installations

  • The combination of a PZ recess and a helical thread facilitates disassembly and allows the nail to be removed when necessary.
  • The extensive range of product lengths, diameters and head types ensures availability of the correct fixing for every scenario.
  • Designed for through installation.
  • Cylinder head prevents plug slipping into over-sized holes and allows fix thin elements.
  • Hammer installation reduces installation time and enables efficient series installation.

Concrete

Concrete

Aerated concrete

Aerated concrete

Solid brick

Solid brick

Lightweight concrete block

Lightweight concrete block

Solid sand-lime brick

Solid sand-lime brick

Hollow lightweight concrete block

Hollow lightweight concrete block

Hollow sand-lime brick

Hollow sand-lime brick

Approved surfaces

Electrical Installations

Frames, profiles, slats

Plasterboard systems

Plinths and finishing profiles

Sanitary and gas installations

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

4ALL Universal plug 5x25 mm with screw 3.5x30 mm - cardboard box - 50 pcs.

UNIPLUG Universal plug 5x25 mm with screw 3,5x30 mm - blister - 14 pcs.

UNO® Universal plug 5x24 mm with screw 3,5x30 mm - cardboard box - 100 pcs.

4ALL Universal plug 5x25 mm with screw 3.5x30 mm - cardboard box - 50 pcs.

UNIPLUG Universal plug 5x25 mm with screw 3,5x30 mm - blister - 14 pcs.

UNO® Universal plug 5x24 mm with screw 3,5x30 mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Insert FX plug into the hole through fixture.

4

Hammer the nail into the plastic sleeve until fixing is secure and flush with the fixture.

5

The sleeve of the expansion plug is correctly attached.

Installation data

Technical library

(6)

Technical assessments(2)

ETA-13/0088

Download

KOT-2019/0762

Download
Declarations(2)

DoP-13/0088 FX

Download

KDWU-2019-0762-FX

Download
Certificates(2)

1488-CPR-0551_Z

Download

020_UWB_1264_Z_FX

Download

Catalogues and product cards

(2)

Product cards(1)

Product cart

Download
Catalogues(1)

Catalogue

Download
