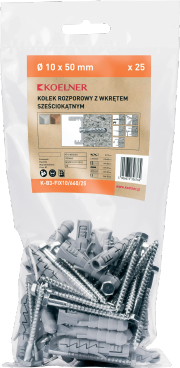

  2. FIX Expansion plug 10x50 mm with hex head screw 6,0x60 - plastic bag - 25 pcs.

Solid walls

K-B3-FIX10/660/25

5906675326764

Koelner

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

Define product parameters:

Diameter
Screw length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    12.00 pack4.22 kg

  • Bulk pack

    12.00 pack4.20 kg

  • Pallet

    720.00 pack252.00 kg

Related products

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Locksmith's hammer 0.5kg - label - 1 pc.

Features

Easy-to-install plug with hex head screw giving exceptional performance in solid base materials

  • Two-way expansion mechanism provides a strong anchorage in solid base materials.
  • Anti-rotation fins prevent spinning during tightening of the screw.
  • Hex head screw for many application scenarios.
  • Engineered grip feature for extra holding power.

Concrete

Concrete

Solid brick

Solid brick

Solid sand-lime brick

Solid sand-lime brick

Aerated concrete

Aerated concrete

Approved surfaces

Cabinets, brackets and wall brackets

Electrical Installations

Frames, profiles, slats

Letterboxes

Lighting

Diameter
Screw length
Packaging and quantity
Index
EAN
Catalog price for pack. net

KD Frame fixing with long expansion zone 10x80 mm with hex head screw - blister - 6 pcs.

KKD Frame fixing with short expansion zone 10x100 mm with hex head screw - blister - 6 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Hex Head Screws, Zinc plated - cardboard box - 50 pcs.

KD Frame fixing with long expansion zone 10x80 mm with hex head screw - blister - 6 pcs.

KKD Frame fixing with short expansion zone 10x100 mm with hex head screw - blister - 6 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Hex Head Screws, Zinc plated - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Insert FIX plug into the hole and tap home.

4

Attach the fixture and tighten the screw to the required tightening torque.

5

The plug is correctly installed in the concrete base.

Installation data

Technical library

(3)

Technical assessments(1)

KOT-2022/2086 (2022-04-28) - FIX, UNO, 4ALL, UNO TIMBER

Download
Declarations(1)

KDWU-2022-2086-FIX

Download
Certificates(1)

020-UWB-1091/Z (KOT-2022/2086 - FIX, UNO, 4ALL, UNO TIMBER)

Download

Catalogues and product cards

(2)

Product cards(1)

Product cart

Download
Catalogues(1)

Catalogue

Download
