Universal
K-PDM3-KEM-PSF-175
5906675418643
Universal bonded anchor without styrene
Define product parameters:
Set

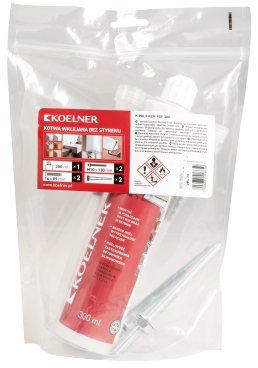

Packaging and quantity
This product has been withdrawn from sale.
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features

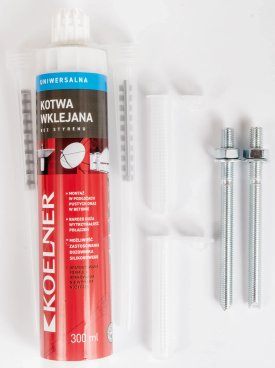

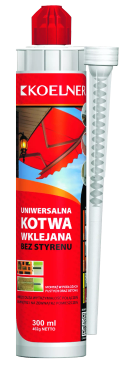

Universal bonded anchor without styrene
- Suitable for repetitive use. Partly used product can be reused fitting a new mixing nozzle.
- Ideal for applications where conventional expansion anchors are not appropriate.
- Suitable for variable anchor embedment depths.
- Easy pumping thanks to patented self opening system and manual or pneumatic dispensers.
- Wide range of applications in the medium load range.
- Available in standard, summer and winter version.
- Can be used with standard silicone dispenser.
Approved surfaces
Set | Packaging and quantity | Index | EAN | Catalog price for set. net |
|---|
Installation manual
Installation step by step
1
Unscrew the cap and screw on the resin dispensing tip.
2
Place the cartridge in the dispenser.
3
Drill a hole to the required diameter and depth for rebar size being used.
4
Hollow substrates: insert mesh sleeve into the hole.
5
When starting dispensing from a new package, discard approximately 10-15 cm of unmixed resin.
6

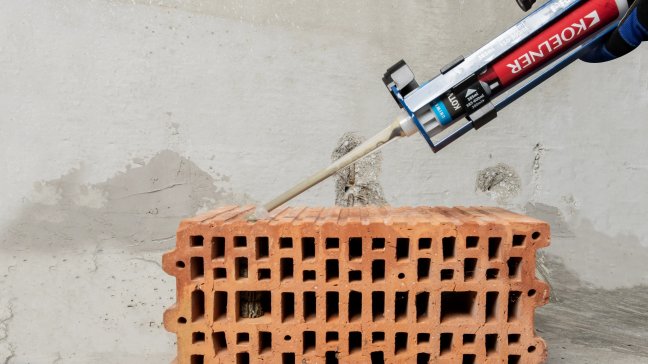

Solid substrates: Insert the mixer nozzle to the bottom of the drill hole and inject resin, slowly withdrawing the nozzle as the hole is filled to 70% of its depth.
7
Immediately after dispensing the resin, insert the rod into the hole with a twisting motion.
8
Remove excess resin that has flowed out of the hole and allow the resin to set properly.
9
Attach fixture and tighten the nut to the required torque.
10
Bonded anchor with the threaded rod is properly installed.
