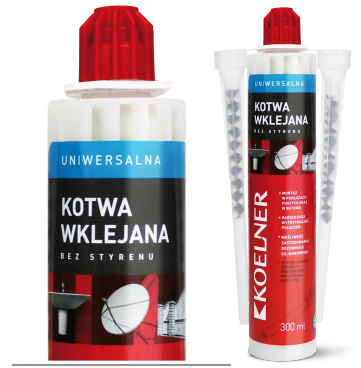

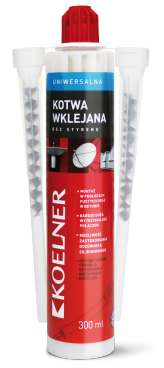

KEM-PSF-300-KOE-P
5906675340715
Polyester bonded anchor without styrene winter version, recommended for medium loads, suitable for use in most construction substrates
Define product parameters:
Unit pack
10.00 pcs.5.90 kg
Bulk pack
10.00 pcs.5.90 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Polyester bonded anchor without styrene winter version, recommended for medium loads, suitable for use in most construction substrates
Approved surfaces
Bonded anchors version | Packaging and quantity | Index | EAN | Catalog price for pc. net |
|---|
Unscrew the cap and screw on the resin dispensing tip.
Place the cartridge in the dispenser.
Drill a hole to the required diameter and depth for rebar size being used.
Hollow substrates: insert mesh sleeve into the hole.
When starting dispensing from a new package, discard approximately 10-15 cm of unmixed resin.
Solid substrates: Insert the mixer nozzle to the bottom of the drill hole and inject resin, slowly withdrawing the nozzle as the hole is filled to 70% of its depth.
Immediately after dispensing the resin, insert the rod into the hole with a twisting motion.
Remove excess resin that has flowed out of the hole and allow the resin to set properly.
Attach fixture and tighten the nut to the required torque.
Bonded anchor with the threaded rod is properly installed.
