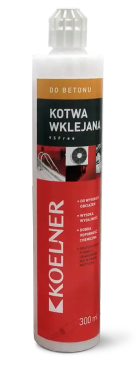

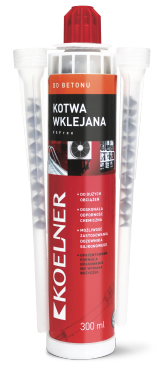

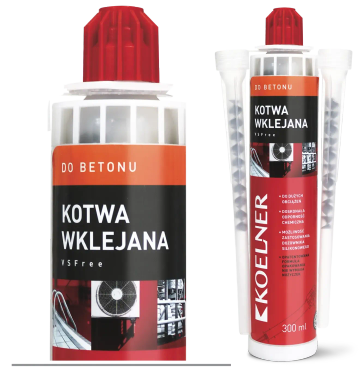

Vinylester bonded anchor for concrete KEM-VFS, Koelner - plastic cartouche - 300 ml

Solid walls

KEM-VSF-300-KOE

5906675408019

Koelner

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

Define product parameters:

Packaging and quantity
Weight and bulk packaging
  • Unit pack

    10.00 pcs.5.97 kg

  • Bulk pack

    10.00 pcs.5.97 kg

  • Pallet

    840.00 pcs.

Related products

Manual Gun For Bonded Anchor Resin (175ml - 310ml) - plastic hanger - 1 pcs.

Professional manual gun for bonded anchors.

Rawplug Blowpump For Cleaning Dust from Drilled Holes - single package - 1 pcs.

Manual blow pump for cleaning dust from drilled holes

Manual Gun For Dual Component Catridges (385/600ml, 280/300/310/380-410ml) - plastic hanger -1 pcs.

Professional manual gun for resin anchors in cartridges 385/600ml(3:1), 280/300/310ml, 380-410ml (10:1), 4,5kN

Round Wire Brush, M12 - plastic hanger - 1 pcs.

Metal brush with handle for cleaning holes in a solid substrate

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Brickdrill SDS PLUS non-impact drill bits 12x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Dustlessdrill SDS Plus 12x200x320 mm drill bits - plastic hanger - 1 pc.

Hollow drill bits SDS plus for dust-free drilling in concrete

Dustlessdrill SDS Plus 14x250x370 mm drill bits - plastic hanger - 1 pc.

Hollow drill bits SDS plus for dust-free drilling in concrete

Metric threaded rod, flat head, steel class 5.8 STUDS 12x160mm - cardboard box - 10 pcs.

Threaded rod made of class 5.8 steel with flat head for use with bonded anchors

18 V RawlDRIVER 60Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 RawlCHARGER - plastic case - 1 pc.

18V 60Nm Cordless drill/driver

Features

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates

  • Suitable for use in dry and wet substrates including under water.
  • Option of use standard manual silicone gun.
  • Standard, winter and summer versions allow you to adjust the setting time to suit the conditions and application.
  • Easy dosage thanks to patented self-opening system and use of manual or electric gun.

Substrates

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Approved surfaces

Applications

Balustrades

Concrete structures

Elevators and escalators

Gates

Handrails

Pipelines

Pitched roofs

Sanitary and gas installations

Ventilated facades

Services

Design Consulting

Design Consulting

Resin calculator

Resin calculator

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Blow out the dust at least 4 times with the hand pump.

2

Drill a hole to the required diameter and depth for rebar size being used.

3

Clean drilled hole 4 times.

4

Remove drill cuttings from the hole using the hand pump four times.

5

Place the cartridge in the dispenser.

6

Dispense to waste until even colour is obtained.

7

Fill with resin 70% of the depth of the hole, starting from the bottom of the hole.

8

Immediately after dispensing the resin, insert the rod into the hole with a twisting motion.

9

Remove the unnecessary amount of resin that flowed from the hole and wait for the appropriate time for the resin to cure.

10

A bonded anchor with a threaded rod is correctly installed in the concrete substrate.

Approvals and publications

Technical library and approvals

Choose document:

ETA-16/0796

1488-CPR-0588/W

DoP-16/0796

SDS - K-KEM-VSF-300-KOE

KOT-2018/0677

KOT-2018/0678

KDWU-2018-0677-KEM-PSF

020-UWB-2720/W

020-UWB-2721/W

Hygienic Certificate - R-KEM

VOC Emission Test Report - KEM-PSF-300
