  2. KI-10M Hammer-in facade fixing with metal pin 10x160 mm - cardboard box - 250 pcs.

KI-10M Hammer-in facade fixing with metal pin 10x160 mm - cardboard box - 250 pcs.

Universal

KI-160M

5906675212449

Koelner

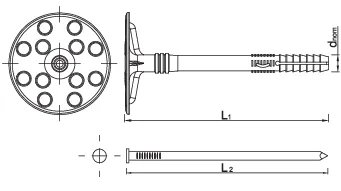

Hammer-in facade fixing with steel nail for countersunk installation with additional insulation cap

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    250.00 pcs.9.43 kg

  • Bulk pack

    250.00 pcs.9.43 kg

  • Pallet

    8000.00 pcs.301.60 kg

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface

Features

Hammer-in facade fixing with steel nail for countersunk installation with additional insulation cap

  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).
  • Installation in all base materials (categories A,B,C,D,E).
  • Expansion zone designed for low embedment depths, reducing the amount of drilling required.
  • Fixing recommend for countersunk installation (with post-installed insulation cap) reduces heat transmission and results in a homogenous insulation surface.
  • Plate stiffness (value 0.4 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Steel nail allows fast and trouble-free installation with correct expansion of the plug.
  • Optimal product parameters enable cost-saving solutions.

Substrates

Concrete C20/25-C50/60

Concrete C20/25-C50/60

Hollow-core slab

Hollow-core slab

Aerated concrete

Aerated concrete

Solid brick

Solid brick

Lightweight concrete block

Lightweight concrete block

Solid sand-lime brick

Solid sand-lime brick

Hollow lightweight concrete block

Hollow lightweight concrete block

Hollow sand-lime brick

Hollow sand-lime brick

Reinforced components of lightweight aggregate concrete

Reinforced components of lightweight aggregate concrete

Approved surfaces

Applications

Facades - thermal insulation systems

Full list of variations

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

KI-10 Hammer-in facade fixing with plastic pin 10x160 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10N Long expansion zone hammer-in facade fixing with metal pin 10x160 mm - cardboard box - 250 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

KI-10 Hammer-in facade fixing with plastic pin 10x160 mm - cardboard box - 250 pcs.

Hammer-in facade fixing with reinforced plastic nail

KI-10N Long expansion zone hammer-in facade fixing with metal pin 10x160 mm - cardboard box - 250 pcs.

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

Installation guide

Installation manual

Installation step by step

1

Cut the hole in insulation board.

2

Drill a hole of appropriate diameter and depth.

3

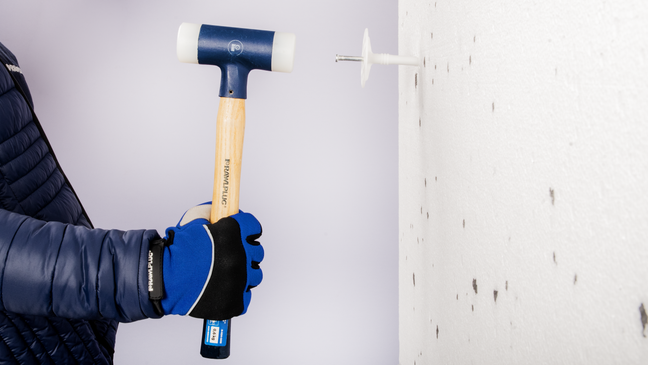

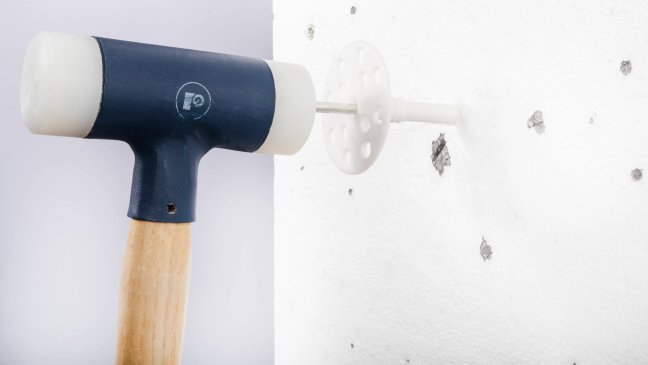

Hammer the steel nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 25 mm in base materials category A, B, C (concrete, solid and perforated bricks), 40 mm in base materials category D (lightweight concrete blocks) and 60 mm in aerated concrete.

4

Insert cap into countersunk hole in insulation board following installation of the facade fixing.

5

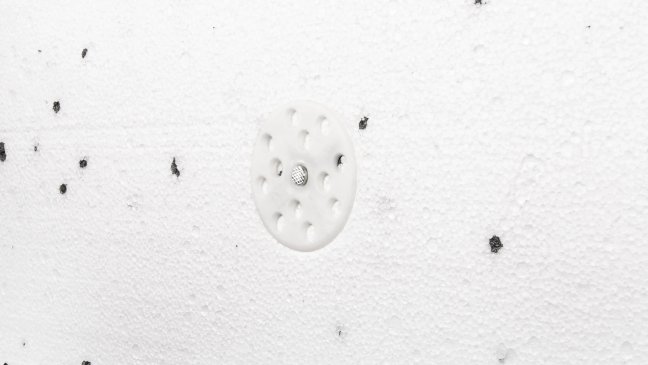

Proper recessed installation.
