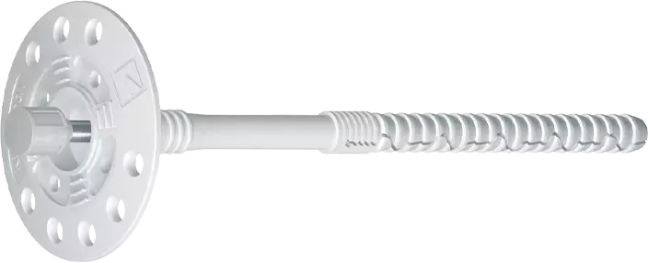

  2. KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x260 mm - cardboard box - 200 pcs.

KI-10N Long expansion zone Hammer-in facade fixing with metal pin 10x260 mm - cardboard box - 200 pcs.

Universal

KI-260N

5906675218748

Koelner

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    200.00 pcs.11.27 kg

  • Bulk pack

    200.00 pcs.11.27 kg

  • Pallet

    4800.00 pcs.270.41 kg

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

KWL - 90mm Insulation Retaining PP Plate - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

Counterbore plastic cutter for EPS and mineral wool KFS 63x23,5 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Polystyrene cap KES - 63x20 mm white - cardboard box - 250 pcs.

Thermal insulation cap reduces heat transmission and results in a homogenous insulation surface

Features

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete

  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Reduction of thermal bridge formation (value 0,003 W/K), through the integration of an impact-resistant plastic overmoulding on the nail head.
  • Steel nail allows fast and trouble-free installation with correct expansion of the plug.
  • Approved for use in base material categories B, C, D, and E.
  • Easy installation with best performance in lightweight base materials.

Substrates

Solid brick (B)

Solid brick (B)

Hollow brick (C)

Hollow brick (C)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Lightweight concrete

Lightweight concrete

Aerated concrete block (D)

Aerated concrete block (D)

Autoclaved aerated concrete (E)

Autoclaved aerated concrete (E)

Approved surfaces

Applications

Facades - thermal insulation systems

Full list of variations

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

KI-10M Hammer-in facade fixing with metal pin 10x260 mm - cardboard box - 200 pcs.

Hammer-in facade fixing with steel nail for countersunk installation with additional insulation cap

KI-10M Hammer-in facade fixing with metal pin 10x260 mm - cardboard box - 200 pcs.

Hammer-in facade fixing with steel nail for countersunk installation with additional insulation cap

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter and depth. Drilling depth of min 70 mm in approved materials.

2

Blow out dust at least 4 times with a hand pump.

3

Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.

4

Lightly tap the plastic nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 60 mm in approved materials.

5

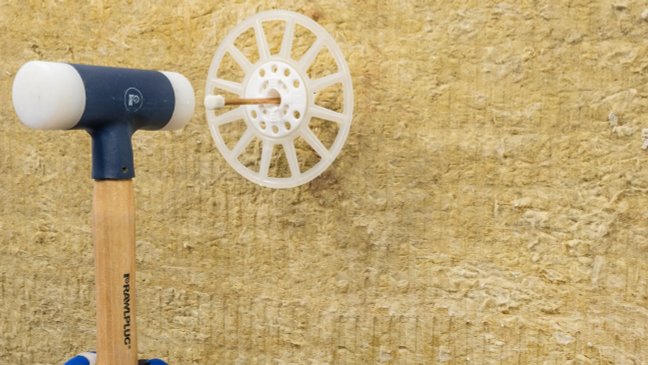

In soft insulation panels the fixing should be combined with insulation retaining plates KWL 90, 110, 140 mm.

Installation data

Approvals and publications

Technical library

(9)

Technical assessments(4)

ETA-07/0221 (2022-04-12)

Nailed-in plastic anchors for fixing of external thermal insulation composite systems with rendering on concrete and masonry

Download

KOT-2021/1550 (2021-03-09)

Plastic anchors for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Download

UKTA-22/6343 (2022-11-11)

Nailed-in plastic anchors for fixing of external thermal insulation composite systems with rendering on concrete and masonry

Download

TC 5856-19

Download
Declarations(3)

DoP-07/0221 KI-10N (ETA-07/0221)

Nailed-in plastic anchors for fixing of external thermal insulation composite systems with rendering on concrete and masonry

Download

KDWU-2021-1550-KI10 N-2026-03-09

Nailed-in plastic anchors for fixing of external thermal insulation composite systems with rendering on concrete and masonry

Download

UKTA-DoP-22/6343-KI-10N (2023-10-02)

Nailed-in plastic anchors for fixing of external thermal insulation composite systems with rendering on concrete and masonry

Download
Certificates(2)

1488-CPR-0368/Z (ETA-07/0291)

Nailed-in plastic anchors for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Download

020_UWB-1064/Z (KOT-2021/1550-1)

Plastic anchors for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Download
