  2. Stair-tread Fixing for Concrete - cardboard box - 25 pcs.

Stair-tread Fixing for Concrete - cardboard box - 25 pcs.

Solid walls

LSB

5906675080109

Koelner

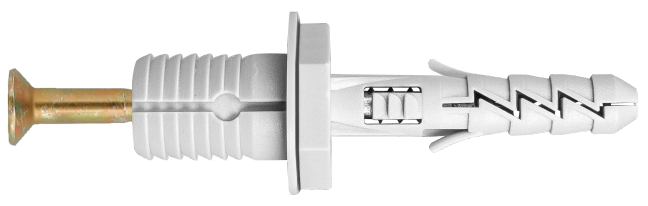

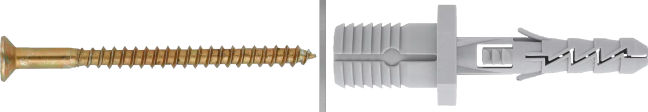

Easy-to-install stair-tread fixings for installation on concrete staircase stringers.

Define product parameters:

Packaging and quantity
Weight and bulk packaging
  • Unit pack

    25.00 pcs.0.36 kg

  • Bulk pack

    400.00 pcs.8.95 kg

  • Pallet

    9600.00 pcs.214.90 kg

Related products

Features

Easy-to-install stair-tread fixings for installation on concrete staircase stringers.

  • The plastic washer include with fixing allow to level out any unevennes in the base material.
  • Two-way expansion mechanism provides a strong anchorage in solid base materials.
  • Anti-rotation fins prevent spinning during tightening of the screw.
  • The elastic shaft geometry allows for the absorbtion  ob vibrations, prevents creaking and increases comfort.
  • Engineered grip feature for extra holding power.

Substrates

Concrete

Concrete

Approved surfaces

Applications

Stairs

Services

Design Consulting

Design Consulting

Design calculations

Design calculations

Technical Support 2

Technical Support 2

Customized packaging

Customized packaging

Installation guide

Installation manual

Installation step by step

1

Drill a hole of the appropriate diameter and depth.

2

Using the LSM-P centring marker, mark the fixing point in the wood.

3

Using a drill suitable for wood, drill a hole of the correct diameter and depth at the marked point in the bottom layer of the tread.

4

Place the connector part with the expansion element in the concrete substrate, then tighten with a screw until the connector is anchored.

5

Apply a small amount of glue to the previously prepared hole in the bottom of the tread.

6

Align the step with the hole with glue to the anchor anchored in the concrete. Press the step until the anchor is fully anchored in the wood.

Installation data
