  2. Metal insulation fixing MBA 8x170 mm - cardboard box - 250 pcs.

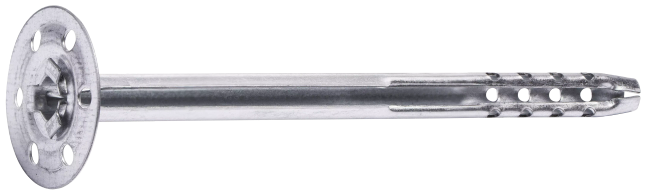

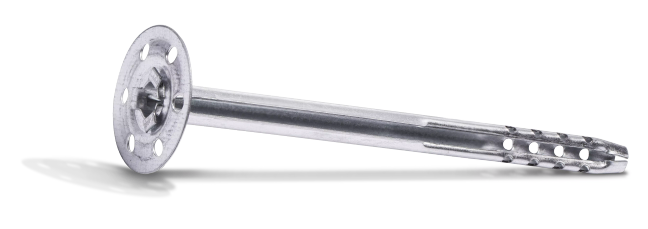

Metal insulation fixing MBA 8x170 mm - cardboard box - 250 pcs.

Universal
Outlet

MBA-08170

5906675049847

Fire-resistant metal insulation fixing

Define product parameters:

Material type
Length
Packaging and quantity

Related products

Rebardrill SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

MKC Spreader plate, outer diameter 85 mm, inner diameter 14 mm, thickness 0.5 mm, galvanized steel - cardboard box - 250 pcs.

Metal washer for use in combination with metal facade fixings from MBA range

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

MKC Spreader plate, outer diameter 85 mm, inner diameter 14 mm, thickness 0.5 mm, stainless steel - cardboard box - 250 pcs.

Metal washer for use in combination with metal facade fixings from MBA range

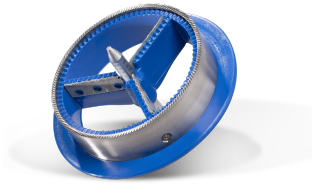

Counterbore cutter for EPS and mineral wool 90x20 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Fireproof gun foam - metal can - 750 ml

B1 – Fire resistant , low-pressure, one-component polyurethane foam with a gun applicator

Rebardrill SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

MKC Spreader plate, outer diameter 85 mm, inner diameter 14 mm, thickness 0.5 mm, galvanized steel - cardboard box - 250 pcs.

Metal washer for use in combination with metal facade fixings from MBA range

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

MKC Spreader plate, outer diameter 85 mm, inner diameter 14 mm, thickness 0.5 mm, stainless steel - cardboard box - 250 pcs.

Metal washer for use in combination with metal facade fixings from MBA range

Counterbore cutter for EPS and mineral wool 90x20 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

Fireproof gun foam - metal can - 750 ml

B1 – Fire resistant , low-pressure, one-component polyurethane foam with a gun applicator

Features

Fire-resistant metal insulation fixing

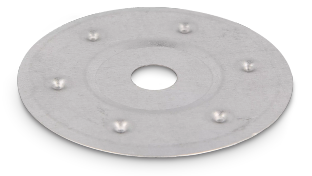

  • Accessory spreader plate, MKC-SS (85mm diameter) also available for installation of soft insulation materials such as mineral wool
  • Metal facade fixing, recommended for use when fire resistance (F120) is a requirement
  • Extensive dimensional range allows anchorage of insulation boards up to 250mm thick
  • Fast and simple hammer-set installation reduces working times.
  • Stainless steel material for high corrosion resistance

Product video

R-MBA: montaż zagłębiony w wełnie mineralnej

R-MBA: montaż powierzchniowy w wełnie mineralnej

Substrates

Concrete C20/25-C50/60 (Use category A)

Concrete C20/25-C50/60 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Ceramic hollow block

Ceramic hollow block

Aerated concrete

Aerated concrete

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow sand-lime brick ≥ 15MPa

Hollow sand-lime brick ≥ 15MPa

Approved surfaces

Applications

Facades - thermal insulation systems

Substitutes

Metal insulation fixing MBA 8x170 mm, stainless steel - cardboard box - 250 pcs.

Fire-resistant metal insulation fixing

Metal insulation fixing MBA 8x170 mm, stainless steel - cardboard box - 250 pcs.

Fire-resistant metal insulation fixing

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill hole to the required diameter and depth for rebar size being usee

2

Blow out dust at least 3 times with a hand pump.

3

Delikatnie wbić łącznik stalowy MBA (z talerzem MKI) do otworu, aż uzyskania odpowiedniej głębokości zakotwienia łącznika.

4

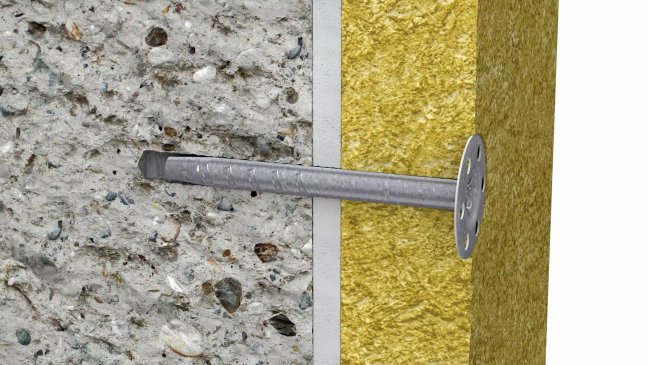

Correctly installed steel facade fixing.

5

Cut the hole in insulation board.

6

Drill a hole of appropriate diameter and depth.

7

Clean drilled hole 3 times.

8

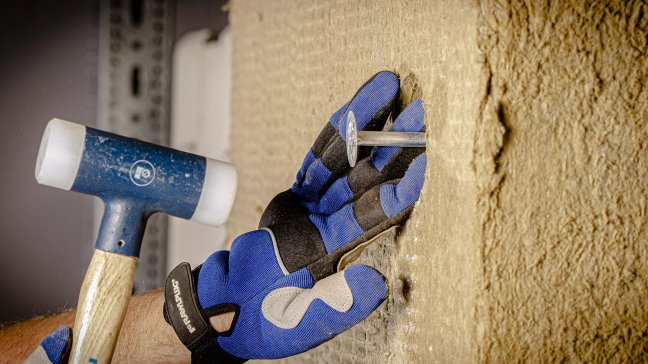

Gently drive the steel dowel into the hole until the correct anchorage depth for the fastener is achieved. For soft substrates, use the MKC 85 mm steel washer.

9

Insert cap into countersunk hole in insulation board following installation of the facade fixing.

10

Correctly installed steel facade fixing.

Installation data
