MBASS Metal Insulation Fixing 8 x 90mm, Stainless Steel, Class A1 Fire Rating - cardboard box - 250 pcs.

Universal

MBA-SS-08090

5906675049885

Fire-resistant metal insulation fixing

Define product parameters:

Material type
Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    250.00 pcs.4.05 kg

  • Bulk pack

    250.00 pcs.4.05 kg

  • Pallet

    12000.00 pcs.

This product has been withdrawn from sale.

Features

Fire-resistant metal insulation fixing

  • Accessory spreader plate, MKC-SS (85mm diameter) also available for installation of soft insulation materials such as mineral wool.
  • Metal facade fixing, recommended for use when fire resistance (F120) is a requirement.
  • Extensive dimensional range allows anchorage of insulation boards up to 250mm thick.
  • Fast and simple hammer-set installation reduces working times.
  • Stainless steel material for high corrosion resistance.

Product video

R_MBA_monta_zag__bionywwe_niemineralnej

R_MBA_monta_powierzchniowywwe_niemineralnej

Krok_po_kroku_jak_montowac_kolki_fasadowe_z_trzpieniem_wbijanym

Substrates

Concrete C20/25-C50/60 (A)

Concrete C20/25-C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Ceramic hollow block

Ceramic hollow block

Aerated concrete

Aerated concrete

Aerated concrete block (D)

Aerated concrete block (D)

Hollow sand-lime brick ≥ 15MPa

Hollow sand-lime brick ≥ 15MPa

Approved surfaces

Applications

Facades - thermal insulation systems

Full list of variations

Services

Installation guide

Installation manual

Installation step by step

1

Drill hole to the required diameter and depth for rebar size being usee

2

Blow out dust at least 3 times with a hand pump.

3

Gently drive the MBA steel connector (with MKI plate) into the hole until the connector is anchored to the correct depth.

4

Correctly installed steel facade fixing.

5

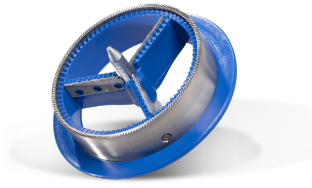

Cut the hole in insulation board.

6

Drill a hole of appropriate diameter and depth.

7

Clean drilled hole 3 times.

8

Gently drive the steel dowel into the hole until the correct anchorage depth for the fastener is achieved. For soft substrates, use the MKC 85 mm steel washer.

9

Insert cap into countersunk hole in insulation board following installation of the facade fixing.

10

Correctly installed steel facade fixing.

Design data
Use categoryA, BCE
Hole diameter in substrated0[mm]
88-
Min. installation depth hnom[mm]
305050
Min. substrate thicknesshmin[mm]
808080
Min. hole depth in substrateh0[mm]
3560 1) / 40 2)-
Min. edge distancecmin[mm]
757575
Min. spacingsmin[mm]
757575
1) Installation in hollow clay brick
2) Installation in silicate hollow brick
SKUmaterialfixing_diameter_d_mmfixing_length_L_mmfixing_plate_diameter_D_mmfastened_element_max_thicknessZP - galvanized8903540
ZP - galvanized81103560
ZP - galvanized81403590
ZP - galvanized817035120
ZP - galvanized820035150
ZP - galvanized825035200
ZP - galvanized830035250
stainless steel8903540
stainless steel81103560
stainless steel81403590
stainless steel817035120
stainless steel820035150
stainless steel825035200
stainless steel830035250
s1_fixing_typeMBAMBA-SS
s4_embedment_depth_hsubef_sub_mm30 3)/50 4)30 3)/50 4)
s22_characteristic_load
s23_tension_load
s4_concrete_c20_25__c50_60_a_sup1_sup_nsubrk_sub_kn0,750,9
s4_solid_clay_bricks_min_20mpa_b_sup1_sup_nsubrk_sub_kn0,50,6
s4_solid_sandlime_bricks_min_20mpa_b_sup1_sup_nsubrk_sub_kn0,60,75
s4_perforated_clay_bricks_min_15mpa_c_sup2_sup_nsubrk_sub_kn0,220,22
s4_hollow_sandlime_blocks_ks_301_min_15mpa_c_sup2_sup_nsubrk_sub_kn0,370,37
s4_autoclaved_aerated_concrete_aac5_min_6mpa_e__nsubrk_sub_kn0,820,82
s22_design_load
s23_tension_load
s4_concrete_c20_25__c50_60_a_sup1_sup_nsubrd_sub_kn0,30,36
s4_solid_clay_bricks_min_20mpa_b_sup1_sup_nsubrd_sub_kn0,20,24
s4_solid_sandlime_bricks_min_20mpa_b_sup1_sup_nsubrd_sub_kn0,240,3
s4_perforated_clay_bricks_min_15mpa_c_sup2_sup_nsubrd_sub_kn0,090,09
s4_hollow_sandlime_blocks_ks_301_min_15mpa_c_sup2_sup_nsubrd_sub_kn0,150,15
s4_autoclaved_aerated_concrete_aac5_min_6mpa_e__nsubrd_sub_kn0,410,41
s22_recommended_load
s23_tension_load
s4_concrete_c20_25__c50_60_a_sup1_sup_nsubrec_sub_kn0,20,3
s4_solid_clay_bricks_min_20mpa_b_sup1_sup_nsubrec_sub_kn0,10,2
s4_solid_sandlime_bricks_min_20mpa_b_sup1_sup_nsubrec_sub_kn0,20,2
s4_perforated_clay_bricks_min_15mpa_c_sup2_sup_nsubrec_sub_kn0,10,1
s4_hollow_sandlime_blocks_ks_301_min_15mpa_c_sup2_sup_nsubrec_sub_kn0,10,1
s4_autoclaved_aerated_concrete_aac5_min_6mpa_e__nsubrec_sub_kn0,30,3
s24_sup1_sup_hammer_drilling
s24_sup2_sup_rotary_drilling_only
s24_sup3_sup_use_category_a__b
s24_sup4_sup_use_category_c__e
Fixing typeMBAMBA-SS
Embedment depthhef[mm]
3030
Edge distance R30 ÷ R120 1)ccr,fi[kN]
6060
Spacing R30 ÷ R120scr,fi[kN]
120120
TENSION LOAD
R (for EI) = 30 min
Characteristic resistanceNRk,fi[kN]
0,190,23
R (for EI) = 60 min
Characteristic resistanceNRk,fi[kN]
0,190,23
R (for EI) = 90 min
Characteristic resistanceNRk,fi[kN]
0,190,23
R (for EI) = 120 min
Characteristic resistanceNRk,fi[kN]
0,150,18
1) In case of fire attack from more than one side, the edge distance shall be ≥ 300 mm
2) Partial safety factor γM,fi = 1,0
