  2. OCS-55 Stainless steel self-drilling screws for metal sheets 6.3x70 mm with washer S14 - cardboard box - 100 pcs.

OCS-55 Stainless steel self-drilling screws for metal sheets 6.3x70 mm with washer S14 - cardboard box - 100 pcs.

Steel

OCS-55/63070S14

5906675475042

Stainless steel self drilling screw with the special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

Define product parameters:

Length
Washer
Color RAL
Packaging and quantity

Related products

Features

Stainless steel self drilling screw with the special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

  • Hardened surface of the thread (flexible core). Corrosion resistant zinc coating has a thickness of no less than 12um.
  • The shape of the thread and its height is designed for applications into sandwich panels and steel construction.
  • Stainless steel self drilling screw made ​​with BIMETAL.
  • Self vulcanizing EPDM washer. Temperature and UV resistant. The special shape of the washer ensures proper seating of the sealing material on the outer cladding material fixture which guarantees a proper seal.
  • Two types of threads: one designed for mounting into a steel structure, second under head thread, prevents external panel dents and helps to seal the connection.
  • The drill bit is designed to provide quick and trouble-free installation in the steel. Sharp point of the drill prevents movement of the surface of the fixture.

Substrates

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Pitched roofs

Profiled and cover sheets

Ventilated facades

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support

Technical Support

Traditional training

Traditional training

Installation guide

Installation manual

Installation step by step

1

Za pomocą nasadki magnetycznej dokręcić wkręt z podkładką przy użyciu wkrętarki z regulowanym momentem obrotowym.

2

Prawidłowo zamocowany wkręt.

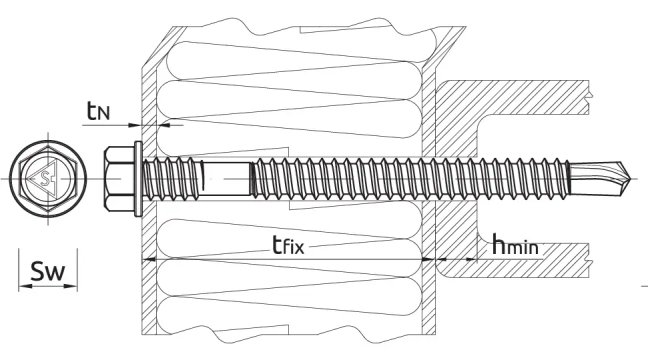

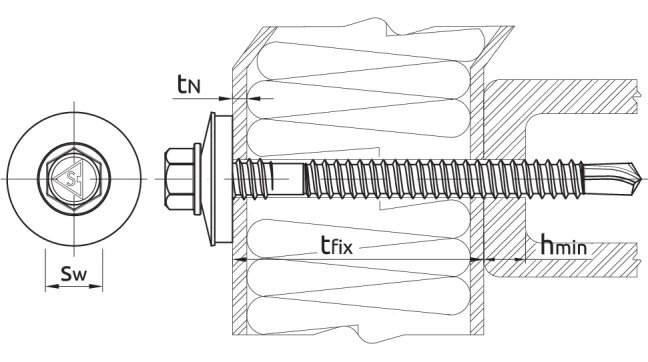

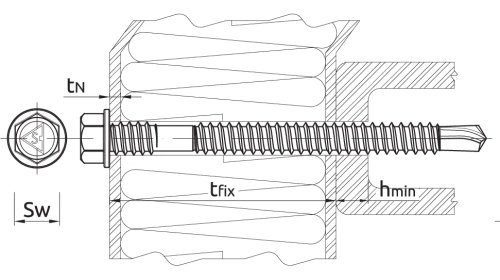

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0453

1488-CPR-0566/Z

DoP-13/0453 OCS_55/63

UKTA-22/6409

UKTA-DoP-226409-OCS

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Catalogue
