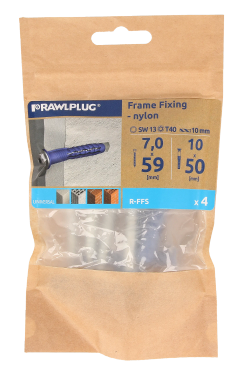

  2. Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x50mm - bio bag - 4 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x50mm - bio bag - 4 pcs.

Universal
New

R-BIOS-FFS10K050/4

5906675504896

Rawlplug

Universal frame fixing with collar and hex head screw for many applications

Define product parameters:

Diameter
Length
Packaging and quantity

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 35 days

Related products

Features

Universal frame fixing with collar and hex head screw for many applications

  • Collared plug for fixing of hard materials (eg. steel)
  • Quick assembly thanks to the short anchoring zone and the possibility of using a punch-tool in aerated concrete
  • Plug design ensures multi-axis expansion
  • Shortest anchoring depth - only 40/50 mm
  • The countersunk plug for flush fixing of soft material (eg. timber)
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D)
  • Internal plug geometry designed to fit the screw head

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Satellite dishes

Ventilated facades

Substitutes

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

Impact bits Torx T40, 25 mm - plastic box - 20 pcs.

Impact bits

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Aggressor SDS Plus drill bits 10x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Rebardrill SDS PLus drill bits 10x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Services

Design Consulting

Design Consulting

Technical Support 2

Technical Support 2

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Designing

Designing

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch in aerated concrete (drawing 2 - base material D)

3

Blow out the dust at least 4 times with the hand pump.

4

Pierce the connector in the base element using a hammer.

5

Tighten the screw.

6

Correctly fixed frame pin with the shortest expansion zone.
