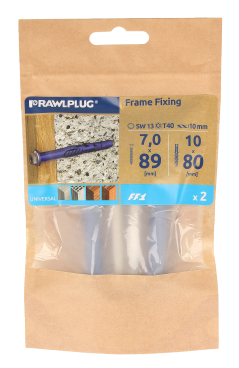

  2. Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x80mm - bio bag - 2 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x80mm - bio bag - 2 pcs.

Universal
BiodegradableNew

R-BIOS-FFS10K080/2

5906675504926

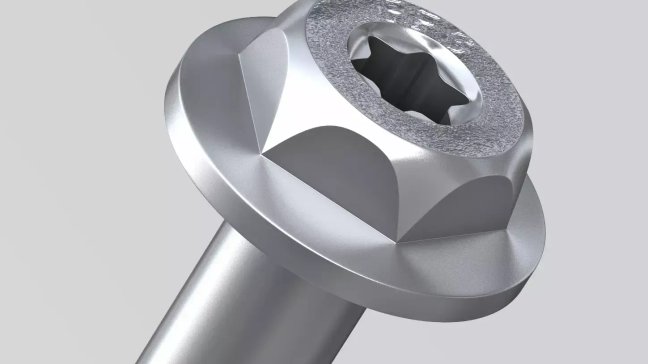

Universal frame fixing with collar and hex head screw for many applications

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    1.00 pack

  • Bulk pack

    12.00 pack

  • Pallet

    1152.00 pack

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 35 days

Related products

Features

Universal frame fixing with collar and hex head screw for many applications

  • Collared plug for fixing of hard materials (eg. steel).
  • Quick assembly thanks to the short anchoring zone and the possibility of using a punch-tool in aerated concrete.
  • Plug design ensures multi-axis expansion.
  • Shortest anchoring depth - only 40/50 mm.
  • Internal plug geometry designed to fit the screw head.
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D).

Product video

R-FFS: Rawlplug Academy: jak kotwić konstrukcje w trudnych warunkach?

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Satellite dishes

Ventilated facades

Substitutes

Services

Design Consulting

Design Consulting

Technical Support 2

Technical Support 2

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Designing

Designing

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch in aerated concrete (drawing 2 - base material D)

3

Blow out the dust at least 4 times with the hand pump.

4

Pierce the connector in the base element using a hammer.

5

Tighten the screw.

6

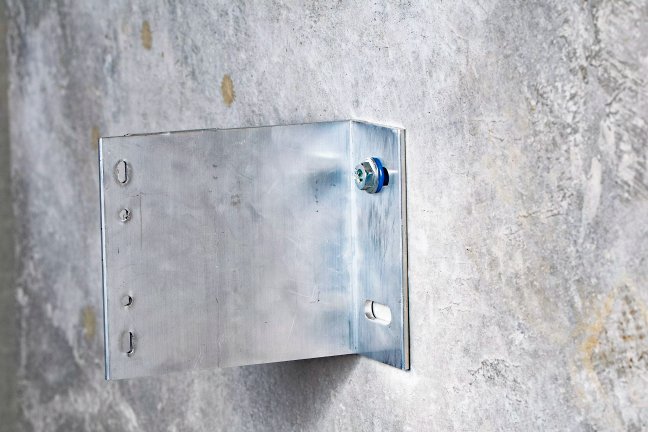

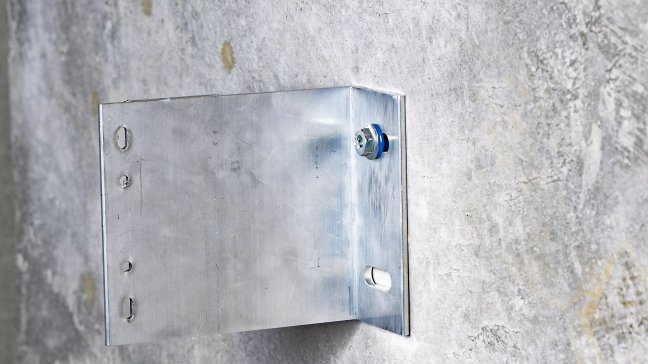

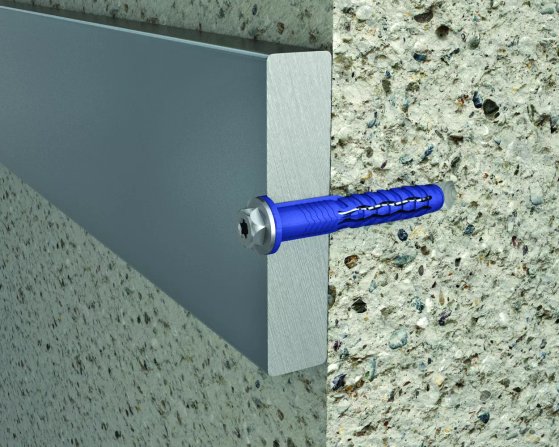

Correctly fixed frame pin with the shortest expansion zone.
