  1. Mainpage

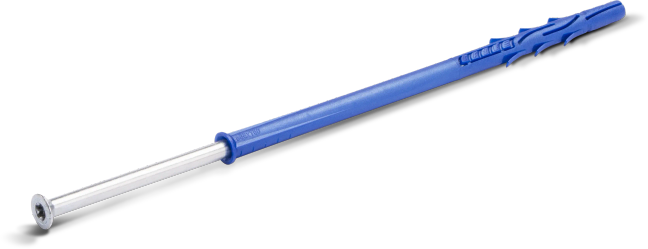

  2. Nylon frame fixing counersunk, zinc flake R-FF1-N-L-ZF 8x80 mm - cardboard box - 50 pcs.

Universal

R-FF1-N-08L080/ZF

5906675292878

Universal countersunk frame fixing with screw, zinc flake

Download model Perform the calculations

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.0.87 kg

  • Bulk pack

    800.00 pcs.14.27 kg

  • Pallet

    19200.00 pcs.342.58 kg

Features

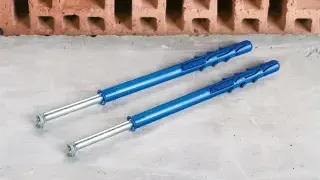

Universal countersunk frame fixing with screw, zinc flake

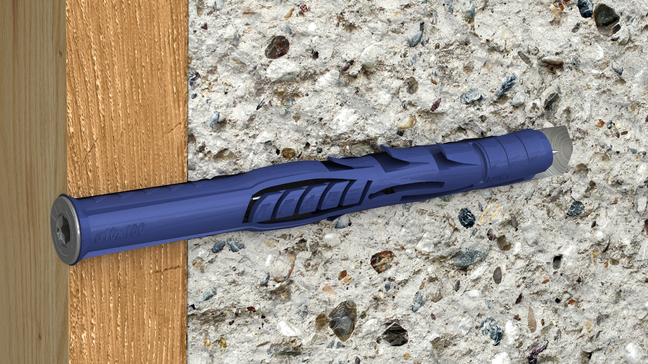

  • The countersunk plug for flush fixing of soft material (eg. timber).

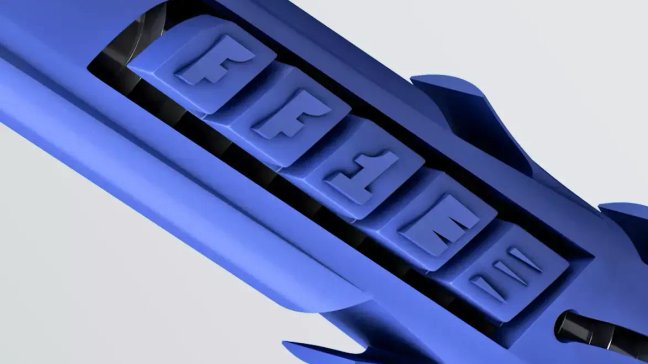

  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D).

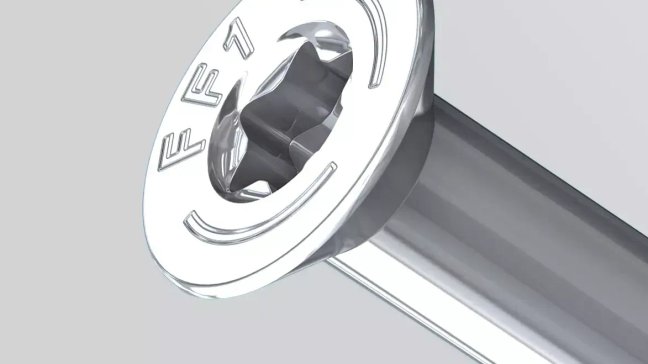

  • Internal plug geometry designed to fit the screw head.
  • Plug design ensures multi-axis expansion.
  • Special zinc flake corrosion-resistant coating for anti-corrosion protection.

rawlplug_ff1_universal

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Bathroom accessories

Doors and windows

Electrical Installations

Furniture

Handrails

Satellite dishes

Ventilated facades

Diameter
Length
Corrosion protection
Packaging and quantity
Index
EAN
Catalog price for pack. net

Nylon frame fixing counersunk, stainless steel R-FF1-N-L-A4 8x80 mm - cardboard box - 50 pcs.

Nylon frame fixing counersunk, zinc flake R-FF1-N-L-ZF 8x100 mm - cardboard box - 50 pcs.

Nylon frame fixing counersunk, stainless steel R-FF1-N-L-A4 8x80 mm - cardboard box - 50 pcs.

Nylon frame fixing counersunk, zinc flake R-FF1-N-L-ZF 8x100 mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the FF1 screw.

6

Properly fixed frame pin with screw.

7

Tighten the FF1

Installation data

Technical library

(4)

Technical assessments(2)

ETA-12-0398-R-FF1-04-09-2024

Download

UKTA-0836-22/6344

Download
Declarations(1)

UKTA-DoP-22/6344-R-FF1

Download
Certificates(1)

1488-CPR-0527/Z

Download

Catalogues and product cards

(6)

Product cards(3)

Product card

Download

Product card

Download

Product card

Download
Catalogues(3)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27

Download
