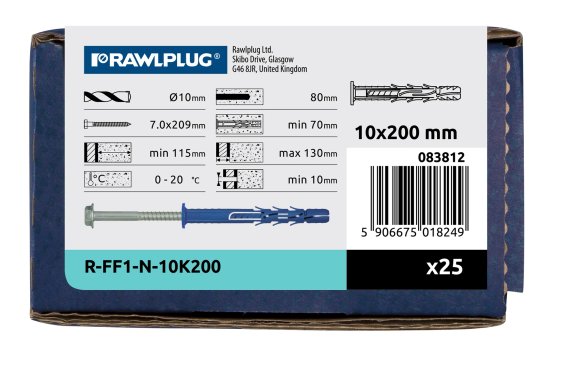

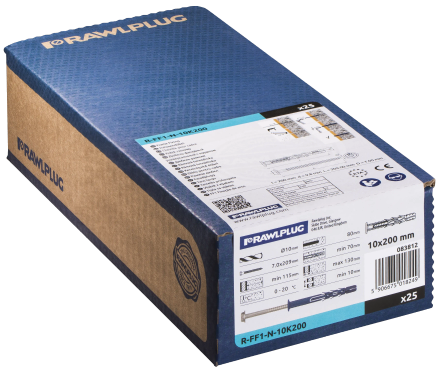

R-FF1-N-10K200
5906675018249
Universal frame fixing with collar and hex head screw for many applications
Define product parameters:
Unit pack
25.00 pcs.1.91 kg
Bulk pack
25.00 pcs.1.91 kg
Pallet
6000.00 pcs.473.88 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Universal frame fixing with collar and hex head screw for many applications
Rawlplug FF1 Universal Nylon Frame Fixing
Approved surfaces
Diameter | Length | Corrosion protection | Type of package | Pieces. per pack. | Index | EAN | Catalog price for pack. net | |
|---|---|---|---|---|---|---|---|---|
| 10 mm | 80 mm | ZP - Galvanized | Cardboard box | 50 | R-FF1-N-10K080 | 5906675266985 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 100 mm | ZP - Galvanized | Cardboard box | 25 | R-FF1-N-10K100 | 5906675266992 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 160 mm | ZP - Galvanized | Cardboard box | 25 | R-FF1-N-10K160 | 5906675267029 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 120 mm | ZP - Galvanized | Cardboard box | 25 | R-FF1-N-10K120 | 5906675267005 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 200 mm | ZP - Galvanized | Cardboard box | 25 | R-FF1-N-10K200 | 5906675018249 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 140 mm | ZP - Galvanized | Cardboard box | 25 | R-FF1-N-10K140 | 5906675267012 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 240 mm | ZP - Galvanized | Cardboard box | 25 | R-FF1-N-10K240 | 5906675019307 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 300 mm | ZP - Galvanized | Cardboard box | 10 | R-FF1-N-10K300 | 5906675019321 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 80 mm | A4 - stainless steel | Cardboard box | 50 | R-FF1-N-10K080-A4 | 5906675079110 | €0.00 | Contact with us and check out our terms of cooperation |
| 10 mm | 200 mm | ZP - Galvanized | Without packaging | 1 | R-P3-FF1-N-10K200 | 5906675318844 | €0.00 | Contact with us and check out our terms of cooperation |
Design Consulting
Technical Support
Design tools
Training at the Rawlplug Academy center
Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)
Use a punch tool for making the hole.
Blow out the dust at least 4 times with the hand pump.
With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.
Tighten the screw.
Correctly fixed pin with the longest expansion zone.
