  1. Mainpage

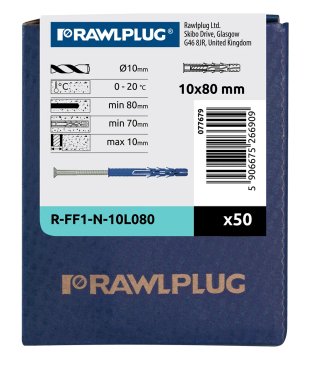

  2. R-FF1 Nylon Frame Fixing 10 x 80mm, With Countersunk Head Screws, Zinc Plated - cardboard box - 50 pcs.

Universal

R-FF1-N-10L080

5906675266909

Universal countersunk frame fixing with screw for many applications

Download model Perform the calculations

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.1.34 kg

  • Bulk pack

    400.00 pcs.11.08 kg

  • Pallet

    9600.00 pcs.265.90 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Rebardrill SDS PLus drill bits 10x100x160 mm - plastic hanger - 1 pc.

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

Torsion Torx40 T40 bits, 25 mm - plastic box - 20 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 10x100x160 mm - plastic hanger - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Rebardrill SDS PLus drill bits 10x100x160 mm - plastic hanger - 1 pc.

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

Torsion Torx40 T40 bits, 25 mm - plastic box - 20 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 10x100x160 mm - plastic hanger - 1 pc.

Features

Universal countersunk frame fixing with screw for many applications

  • The countersunk plug for flush fixing of soft material (eg. timber).
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D).
  • Internal plug geometry designed to fit the screw head.
  • Plug design ensures multi-axis expansion.

rawlplug_ff1_universal

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Approved surfaces

Bathroom accessories

Doors and windows

Electrical Installations

Furniture

Handrails

Satellite dishes

Ventilated facades

Diameter
Length
Corrosion protection
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-FF1 Nylon Frame Fixing 10 x 80mm, With Hex Head Screws, Zinc plated - cardboard box - 50 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Hex Head Screws, A4 Stainless Steel - cardboard box - 50 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Countersunk Head Screws, A4 Stainless Steel - cardboard box - 50 pcs.

Nylon frame fixing counersunk, zinc flake R-FF1-N-L-DT 10x80 mm - cardboard box - 50 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x80 mm - cardboard box - 50 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Hex Head Screws, Zinc plated - cardboard box - 50 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Hex Head Screws, A4 Stainless Steel - cardboard box - 50 pcs.

R-FF1 Nylon Frame Fixing 10 x 80mm, With Countersunk Head Screws, A4 Stainless Steel - cardboard box - 50 pcs.

Nylon frame fixing counersunk, zinc flake R-FF1-N-L-DT 10x80 mm - cardboard box - 50 pcs.

Frame fixing with the shortest anchoring zone and collar hex head - zinc plated R-FFS-K 10x80 mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the FF1 screw.

6

Properly fixed frame pin with screw.

7

Tighten the FF1

Installation data
