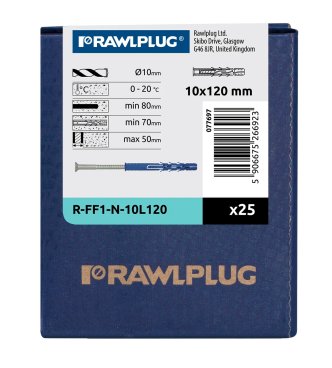

  2. Nylon frame fixing countersunk version - zinc plated R-FF1 10x120 mm - cardboard box - 25 pcs.

Nylon frame fixing countersunk version - zinc plated R-FF1 10x120 mm - cardboard box - 25 pcs.

Universal

R-FF1-N-10L120

5906675266923

Universal countersunk frame fixing with screw for many applications

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Rebardrill SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Rebardrill SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Rebardrill SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Rebardrill SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Features

Universal countersunk frame fixing with screw for many applications

  • The countersunk plug for flush fixing of soft material (eg. timber)
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D)
  • Internal plug geometry designed to fit the screw head
  • Plug design ensures multi-axis expansion

Product video

Rawlplug FF1 Universal Nylon Frame Fixing

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Air conditioning / ventilation

Bathroom accessories

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Furniture

Gates

Handrails

Kitchen cabinets

Satellite dishes

TV brackets

Ventilated facades

Substitutes

Nylon frame fixing with collar hex head - zinc plated R-FF1 10x120 mm - cardboard box - 25 pcs.

Universal frame fixing with collar and hex head, delta tone plated screw

Nylon frame fixing with collar hex head - stainless steel FF1 10x120 mm - cardboard box - 25 pcs.

Universal frame fixing with collar and stainless steel screw  for many applications

Nylon frame fixing counersunk, stainless steel R-FF1-N-L-A4 10x120 mm - cardboard box - 25 pcs.

Universal countersunk frame fixing with stainless steel screw for many applications

Nylon frame fixing counersunk, zinc flake R-FF1-N-L-DT 10x120 mm - cardboard box - 25 pcs.

Universal countersunk frame fixing with screw, zinc flake

Nylon frame fixing countersunk version - zinc plated R-FF1 10x120 mm gray - cardboard box - 25 pcs.

Frame dowel with galvanized countersunk screw

Nylon frame fixing with collar hex head - zinc plated R-FF1 10x120 mm - cardboard box - 25 pcs.

Universal frame fixing with collar and hex head, delta tone plated screw

Nylon frame fixing with collar hex head - stainless steel FF1 10x120 mm - cardboard box - 25 pcs.

Universal frame fixing with collar and stainless steel screw  for many applications

Nylon frame fixing counersunk, stainless steel R-FF1-N-L-A4 10x120 mm - cardboard box - 25 pcs.

Universal countersunk frame fixing with stainless steel screw for many applications

Nylon frame fixing counersunk, zinc flake R-FF1-N-L-DT 10x120 mm - cardboard box - 25 pcs.

Universal countersunk frame fixing with screw, zinc flake

Nylon frame fixing countersunk version - zinc plated R-FF1 10x120 mm gray - cardboard box - 25 pcs.

Frame dowel with galvanized countersunk screw

Services

Design Consulting

Design Consulting

Technical Support

Technical Support

Design tools

Design tools

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the FF1 screw.

6

Properly fixed frame pin with screw.

7

Tighten the FF1

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-12/0398

1488-CPR-0527/Z

DoP-12/0398 R-FF1

UKTA-0836-22/6344

UKTA-DoP-22/6344-R-FF1

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
