  2. Frame fixing with the shortest expansion zone with a collar and a stainless hexagonal head screw R-FFS-K-A4 10x50 mm, stainless steel mm - cardboard box - 50 pcs.

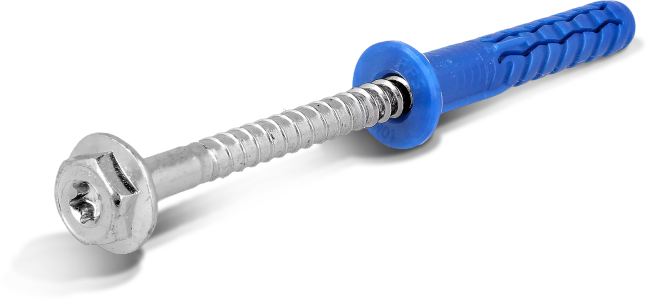

Frame fixing with the shortest expansion zone with a collar and a stainless hexagonal head screw R-FFS-K-A4 10x50 mm, stainless steel mm - cardboard box - 50 pcs.

Solid walls
New

R-FFS-N-10K050-A4

5906675485058

Rawlplug

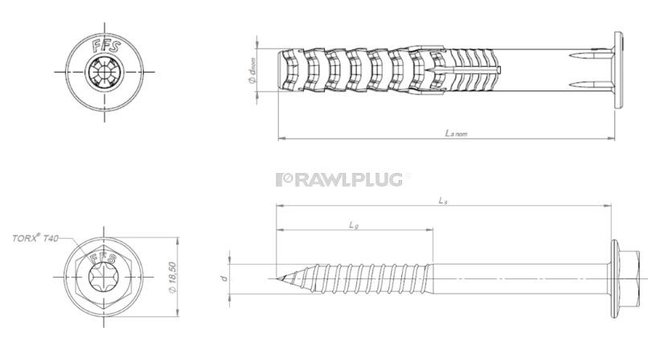

Frame fixing with shortest expansion zone

Define product parameters:

Diameter
Head type
Length
Material
Packaging and quantity

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Rebardrill SDS PLus drill bits 10x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Aggressor SDS Plus drill bits 10x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Impact bits Torx T40, 25 mm - plastic box - 20 pcs.

Impact bits

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Rebardrill SDS PLus drill bits 10x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Aggressor SDS Plus drill bits 10x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Impact bits Torx T40, 25 mm - plastic box - 20 pcs.

Impact bits

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Frame fixing with shortest expansion zone

  • Collared plug for fixing of hard materials (eg. steel)
  • Quick assembly thanks to the short anchoring zone and the possibility of using a punch-tool in aerated concrete
  • Plug design ensures multi-axis expansion
  • Shortest anchoring depth - only 40/50 mm
  • Frame fixing made of A4 steel intended for outdoor use

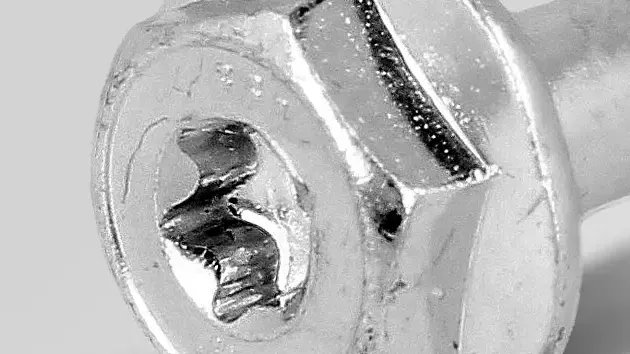

  • Internal plug geometry designed to fit the screw head
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D)

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Satellite dishes

Ventilated facades

Substitutes

Nylon frame fixing with collar hex head - stainless steel FF1 10x80 mm - cardboard box - 50 pcs.

Universal frame fixing with collar and stainless steel screw  for many applications

Nylon frame fixing counersunk, stainless steel R-FF1-N-L-A4 10x80 mm - cardboard box - 50 pcs.

Universal countersunk frame fixing with stainless steel screw for many applications

4ALL Universal plug 10x50mm with screw 6,0x60mm - plastic box - 25 pcs.

High performance nylon plug with screw for all types of substrates

UNO® Universal plug 10x36 mm with screw 6,0x50 mm - cardboard box - 100 pcs.

Truly universal plug which fixes into any base material, solid or hollow.

Nylon frame fixing with collar hex head - stainless steel FF1 10x80 mm - cardboard box - 50 pcs.

Universal frame fixing with collar and stainless steel screw  for many applications

Nylon frame fixing counersunk, stainless steel R-FF1-N-L-A4 10x80 mm - cardboard box - 50 pcs.

Universal countersunk frame fixing with stainless steel screw for many applications

4ALL Universal plug 10x50mm with screw 6,0x60mm - plastic box - 25 pcs.

High performance nylon plug with screw for all types of substrates

UNO® Universal plug 10x36 mm with screw 6,0x50 mm - cardboard box - 100 pcs.

Truly universal plug which fixes into any base material, solid or hollow.

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Traditional training

Traditional training

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch in aerated concrete (drawing 2 - base material D)

3

Blow out the dust at least 4 times with the hand pump.

4

Pierce the connector in the base element using a hammer.

5

Tighten the screw.

6

Correctly fixed frame pin with the shortest expansion zone.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-18/0818

1488-CPR-0615/Z

DoP-18/0818 R-FFS

UKTA-22/6347

UKTA-DoP-22/6347-R-FFS

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
