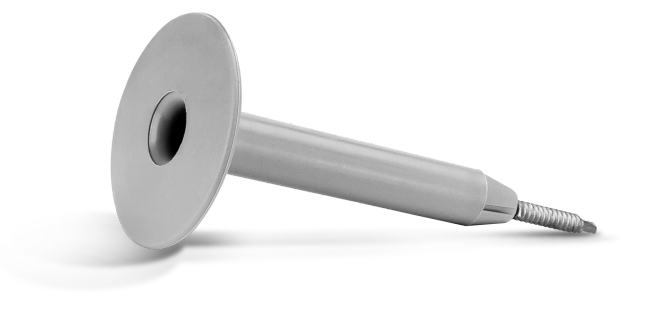

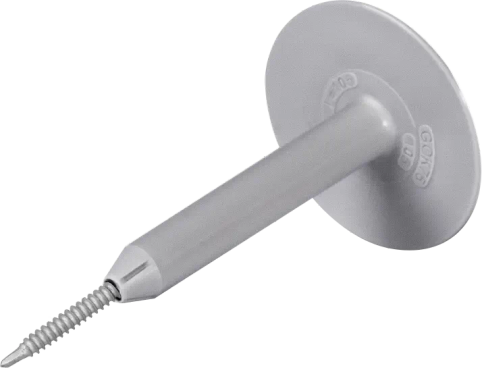

Telescopic sleeve with round plate R-GOK 50x105 mm PP + WX-48T060 - cardboard box - 250 pcs.

Steel
Outlet

R-GOK105WX48T060

5906675421599

Telescopic sleeve with screw for flat roof insulation fixings

Define product parameters:

Length
Screw length
Packaging and quantity

Related products

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Round steel washer R-POK 76x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

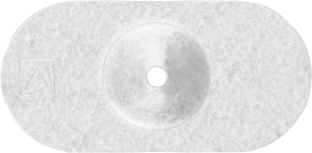

Oval steel washer R-POW 80x40 mm 7.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

Round steel washer R-POK 40x2.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

RoofSystem SDS Plus adapter 500 mm - plastic box - 1 pc.

Roofsystem SDS Plus Adapter

RoofSystem SDS Plus adapter 800 mm - plastic box - 1 pc.

Roofsystem SDS Plus Adapter

Adapters for bits with M6 thread 650 mm - plastic box - 1 pc.

Threaded bit adapters

Bit adapters with M6 thread 350 mm - plastic box - 1 pc.

Threaded bit adapters

Oval steel washer R-POW 80x40 mm 5.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

500 mm adapter for bits with M5 thread - plastic box - 1 pc.

Threaded bit adapters

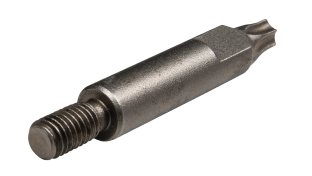

TORX 25 45 mm bit with M5 thread - plastic box - 10 pcs.

Torx T25 bit with M5 thread

Features

Telescopic sleeve with screw for flat roof insulation fixings

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.

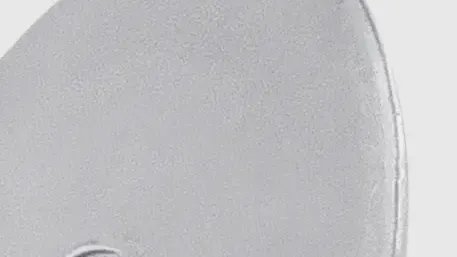

  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly
  • The cone’s optimal shape facilitates speed and ease of installation through the thermal insulation.
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.

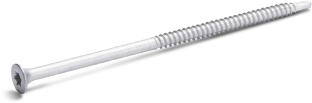

  • Hardened screw's thread surface. High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.
  • The shape and type of screw's thread is designed specifically for trapezoid sheet substrate
  • Reduced drilling point ensures optimal tightness and correct hole diameter in thin metal sheets.
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool

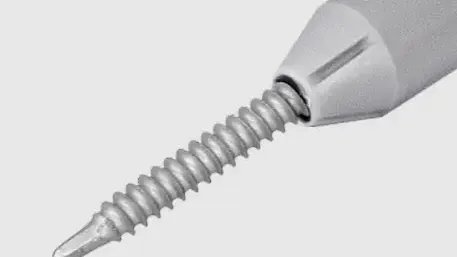

  • Pre-assembled sleeve with a screw shortens the assembly time, additionally it has a security in the form of a locking O-ring, which prevents the screw from slipping out.

Product video

Rawlplug Roofing Insulation Fixings R-GOK

Substrates

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Flat roofs

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Design calculations

Design calculations

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Place the plastic sleeve with the fixing together with the WX screw in the insulating material.

2

Using a screwdriver, screw in the sleeves with the attachment and the WX screw until the required depth is obtained.

3

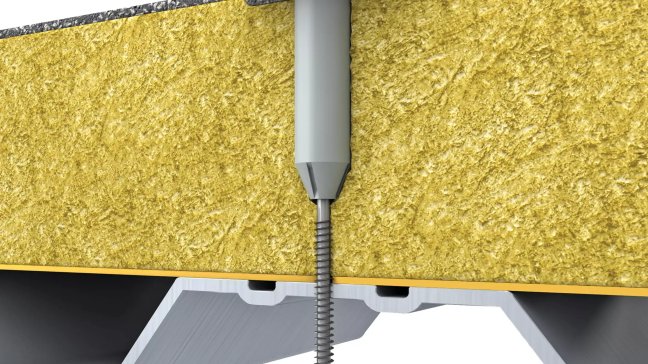

Properly mounted sleeve with fastening and WX screw.

Installation data
