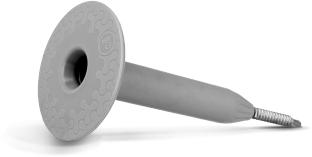

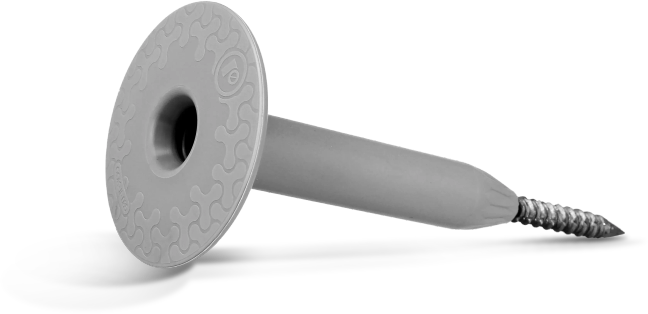

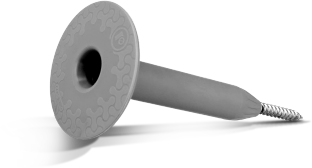

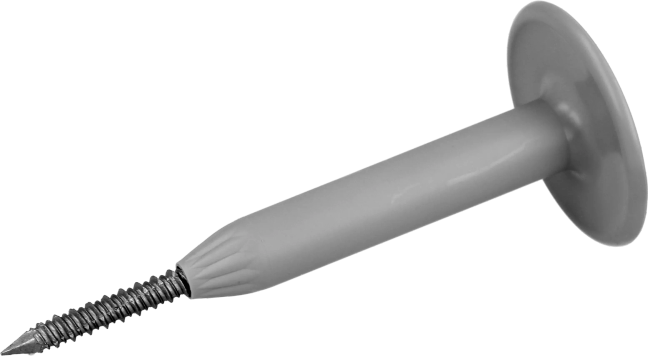

  2. Telescopic sleeve with round plate R-GOK-II 50x085 mm PP + WBT-61T075 - cardboard box - 250 pcs.

Telescopic sleeve with round plate R-GOK-II 50x085 mm PP + WBT-61T075 - cardboard box - 250 pcs.

Universal

R-GOKII105WBT61075

5906675528748

Rawlplug

Pre-assembled telescopic fastening system for concrete substrate and timber

Define product parameters:

Length
Screw length
Packaging and quantity

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 7 days

Related products

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Torx25 long bits, 200 mm - blister - 1 pc.

Long Torsion bits

Round steel washer R-POK 76x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-WX-T Self-drilling screws for steel T25 4.8x120 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

Oval steel washer R-POW 80x40 mm 7.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Torx25 long bits 100 mm - blister - 1 pc.

Long Torsion bits

R-WBT Screws for concrete and timber T25 6.1x75 mm zinc flak coating - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

R-WBT Screws for concrete and timber T25 6.1x120 mm zinc flak coating - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

R-WX-T Self-drilling screws for steel T25 4.8x140 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WBT Screws for concrete and timber T25 6.1x100 mm zinc flak coating - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

Torx25 long bits, 150 mm - blister - 1 pc.

Long Torsion bits

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Torx25 long bits, 200 mm - blister - 1 pc.

Long Torsion bits

Round steel washer R-POK 76x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-WX-T Self-drilling screws for steel T25 4.8x120 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

Oval steel washer R-POW 80x40 mm 7.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Torx25 long bits 100 mm - blister - 1 pc.

Long Torsion bits

R-WBT Screws for concrete and timber T25 6.1x75 mm zinc flak coating - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

R-WBT Screws for concrete and timber T25 6.1x120 mm zinc flak coating - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

R-WX-T Self-drilling screws for steel T25 4.8x140 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WBT Screws for concrete and timber T25 6.1x100 mm zinc flak coating - cardboard box - 100 pcs.

Screw for concrete substrates TX25 head. Shape and type of the thread specially design to allow connecting to concrete and wood.

Torx25 long bits, 150 mm - blister - 1 pc.

Long Torsion bits

Features

Pre-assembled telescopic fastening system for concrete substrate and timber

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.
  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool
  • The lower part of the connector telescope has been designed in the shape of a cone with an optimum angle of inclination which significantly affects the speed of its installation.
  • Guarantees the highest load capacity of the roof construction for both static and dynamic loads in accordance with ETAG006.
  • Hardened screw's thread surface. High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.
  • Pre-assembled sleeve with a screw shortens the assembly time, additionally it has a security in the form of a locking O-ring, which prevents the screw from slipping out.

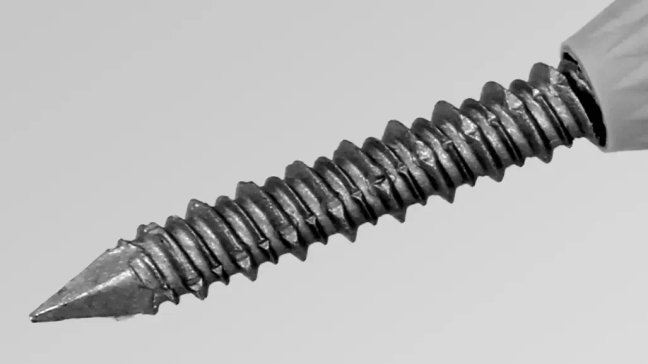

  • Shape and type of the thread specially design to allow connecting to concrete and wood.
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.
  • The engraving on the plate reduces the effect of the notch and crack propagation (spreading of damage in the material subjected to stress).

Substrates

Concrete

Concrete

Reinforced concrete

Reinforced concrete

Concrete slab

Concrete slab

Hollow-core slab

Hollow-core slab

Timber

Timber

Oriented strand board

Oriented strand board

Chipboard

Chipboard

Light wood wool boards

Light wood wool boards

Fiber cement boards

Fiber cement boards

Hollow core roof plate

Hollow core roof plate

Approved surfaces

Applications

Flat roofs

Substitutes

Telescopic sleeve with round plate R-GOK-II 50x105 mm polypropylene - cardboard box - 250 pcs.

Telescopic sleeve for flat roof insulation fixings

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WO-48T060 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate and timber

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WO-48T080 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate and timber

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T050 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T060 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T070 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T080 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm polypropylene - cardboard box - 250 pcs.

Telescopic sleeve for flat roof insulation fixings

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WO-48T060 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate and timber

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WO-48T080 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate and timber

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T050 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T060 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T070 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WX-48T080 - cardboard box - 250 pcs.

Pre-assembled telescopic fastening system for trapezoid sheet substrate

Services

EasyFix

EasyFix

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Traditional training

Traditional training

Installation guide

Installation manual

Installation step by step

1

Drill the hole in concrete of required diameter and depth.

2

Place the plastic sleeve R-GOK-II with the R-WBT screw in the insulating material.

3

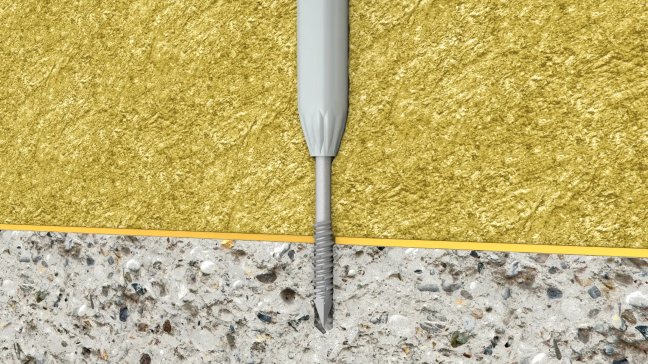

Using a driver, screw in the R-GOK-II connector with the R-WBT screw until the appropriate depth is achieved.

4

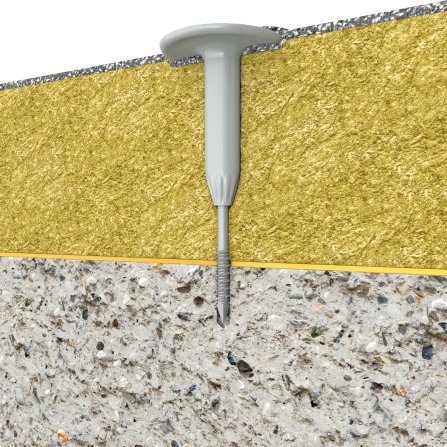

Properly mounted sleeve R-GOK-II with R-WBT screw.
