Telescopic sleeve with round plate R-GOK-II 50x105 mm PP + WO-48T080 - cardboard box - 250 pcs.

Universal

R-GOKII105WO48T080

5906675528861

Pre-assembled telescopic fastening system for trapezoid sheet substrate and timber

Define product parameters:

Length
Screw length
Packaging and quantity

Related products

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Round steel washer R-POK 76x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Torx25 long bits, 200 mm - blister - 1 pc.

Long Torsion bits

Oval steel washer R-POW 80x40 mm 7.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

R-WX-T Self-drilling screws for steel T25 4.8x120 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WX-T Self-drilling screws for steel T25 4.8x140 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

Torx25 long bits 100 mm - blister - 1 pc.

Long Torsion bits

18 V RawlDRIVER Drywall screwdriver set with RawlCASE, 2 batteries 2.0 Ah, 1,5 Ah RawlCHARGER and automatic screw feeder - plastic case - 1 pc.

The RawlDriver 18V cordless screwdriver with 1/4" handle gives the possibility of quick and stable installation in G-K boards.

R-WX-T Self-drilling screws for steel T25 4.8x100 mm zinc flak coating - cardboard box - 200 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

R-WX-T Self-drilling screws for steel T25 4.8x80 mm zinc flak coating - cardboard box - 250 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

Torx25 long bits, 150 mm - blister - 1 pc.

Long Torsion bits

R-WX-T Self-drilling screws for steel T25 4.8x160 mm zinc flak coating - cardboard box - 100 pcs.

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

Features

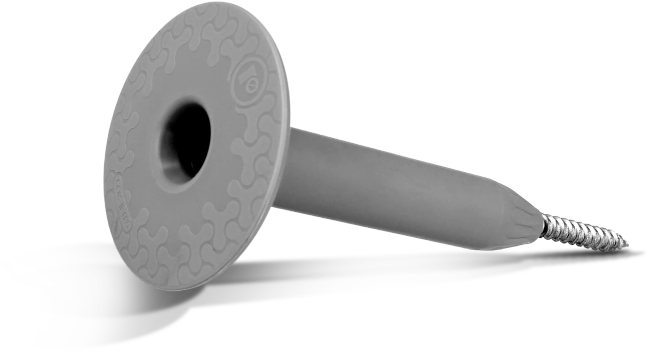

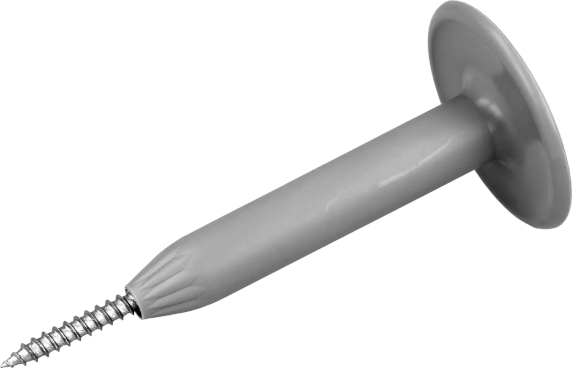

Pre-assembled telescopic fastening system for trapezoid sheet substrate and timber

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.
  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool
  • The lower part of the connector telescope has been designed in the shape of a cone with an optimum angle of inclination which significantly affects the speed of its installation.
  • Guarantees the highest load capacity of the roof construction for both static and dynamic loads in accordance with ETAG006.
  • Hardened screw's thread surface. High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.
  • Pre-assembled sleeve with a screw shortens the assembly time, additionally it has a security in the form of a locking O-ring, which prevents the screw from slipping out.

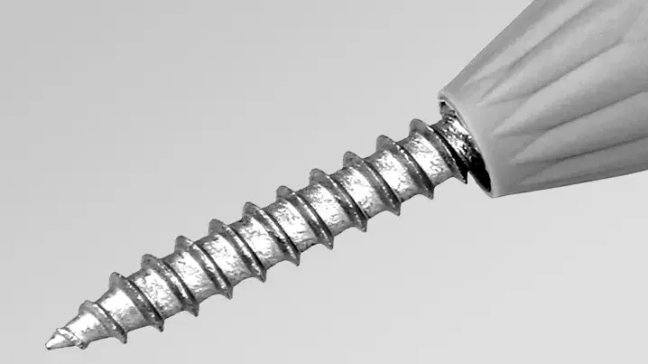

  • The shape and type of screw's thread is designed specifically for connecting to metal sheets and wood. The drill point is designed to provide a fast and hassle-free installation. Sharp point of the drill prevents movement of the surface of the fixture
  • The engraving on the plate reduces the effect of the notch and crack propagation (spreading of damage in the material subjected to stress).

Substrates

Metal sheet & profiles

Metal sheet & profiles

Timber

Timber

Oriented strand board

Oriented strand board

Chipboard

Chipboard

Light wood wool boards

Light wood wool boards

Approved surfaces

Applications

Flat roofs

Substitutes

Services

EasyFix

EasyFix

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Design calculations

Design calculations

Installation guide

Installation manual

Installation step by step

1

Place the plastic sleeve R-GOK-II with the R-WO screw in the insulating material.

2

Using a driver, screw in the R-GOK-II connector with the R-WO screw until the appropriate depth is achieved.

3

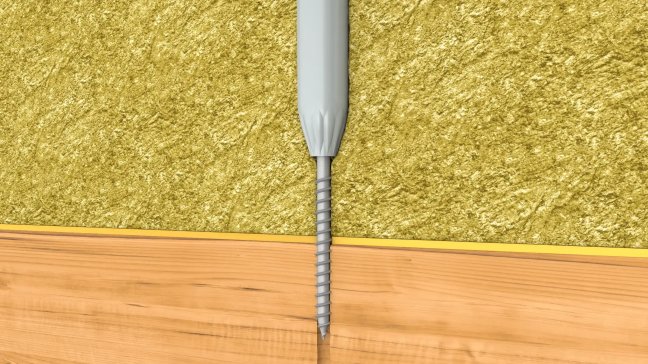

Properly mounted sleeve R-GOK-II with R-WO screw.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ITB-KOT-2022/2206 w1

020-UWB-1121/Z

KDWU-2022-2206-GOK-II

KDWU-2022-2206-R-WO

ETA-23/0198

1488-CPR-0697/Z

DoP-23/0198-R-GOK-II

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF
