  2. Zinc plated internally threaded M10 concrete screw anchor R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

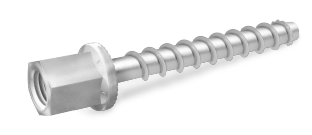

Zinc plated internally threaded M10 concrete screw anchor R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Solid walls
New

R-HLX-06X55-I10-ZP

5906675557229

Hardened induction concrete screw with internal threaded head

Define product parameters:

Diameter
Length
Coating
Thread
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.2.45 kg

  • Bulk pack

    100.00 pcs.2.45 kg

  • Pallet

    25600.00 pcs.627.20 kg

Related products

Rawplug Blowpump For Cleaning Dust from Drilled Holes - single package - 1 pcs.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pcs.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 50 x 110mm, PGM Approved - plastic hanger - 1 pcs.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

10mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Rawplug Blowpump For Cleaning Dust from Drilled Holes - single package - 1 pcs.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pcs.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 50 x 110mm, PGM Approved - plastic hanger - 1 pcs.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

10mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Features

Hardened induction concrete screw with internal threaded head

  • The new thread geometry with additional cutting teeth ensures quick and easy installation, also in reinforced concrete C20/25 - C50/60.
  • Fire resistance R30-R120.
  • R-HLX concrete screws can be used in earthquake-prone zones - seismic category C1 and C2.
  • The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point. This provides great flexibility.
  • Possibility of installation near the edge of concrete and at short distances from adjacent screws.
  • Polish production guarantees the highest precision of workmanship and its repeatability.
  • Possibility of disassembly and repeated use after verifying thread wear with a tester.
  • The highest parameters in cracked and uncracked concrete C20/25 - C50/60 confirmed in the ETA.
  • Induction hardening ensures high surface hardness and high core impact strength.

Product video

R-HLX High performed screwbolt

R-HLX Innowacyjne wkręty do betonu

Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Hollow-core slab C30/37-C50/60

Hollow-core slab C30/37-C50/60

High-density natural stone

High-density natural stone

Approved surfaces

Applications

Balustrades

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Substitutes

Zinc plated internally threaded M8/M10 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M10 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8/M10 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M10 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill the hole with a hammer drill (1a) ) to the required depth according to the table

2

Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..

3

Wkręt do betonu wkręcić w otwór przy pomocy klucza udarowego z użyciem odpowiedniej nasadki udarowej.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-23/0707

188-CPR-1100/W

DoP-23/0707 R-HLX

VDS_CEA_4001

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

General catalogue - PDF

Specification Design Guide
