R-HLX-08X100-CS-ZF
5906675556567
Induction hardened concrete screw anchor with countersunk head
Define product parameters:
Unit pack
100.00 pcs.4.66 kg
Bulk pack
100.00 pcs.4.66 kg
Pallet
19200.00 pcs.894.72 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Induction hardened concrete screw anchor with countersunk head
R-HLX High performed screwbolt
Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?
Approved surfaces
Diameter | Length | Coating | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Drill the hole with a hammer drill (1a) ) to the required depth according to the table
Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..

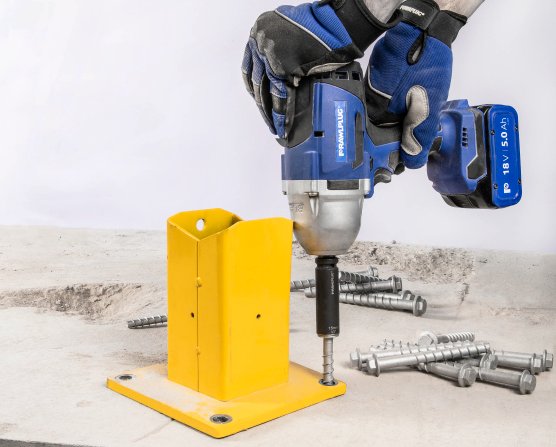

Screw the concrete screw into the hole using an impact wrench and a suitable impact bit. Tighten until the element is pressed to the surface. Installation using an impact wrench with a tangential impact. Finish screwing in when the screw head is in contact with the element/substrate being fastened. The screw head must not be damaged
Possibility to unscrew the fixed anchor to a maximum height of 10mm. In the adjustment process, the permissible thickness of the fastened elements (Tfix) must be observed
Screw the concrete screw into the hole with an impact wrench and a suitable impact socket. Tighten until the fixture is clamped to the substrate. Installation with any tangential impact wrench
Finish screwing in when the anchor presses the fastened element (substrate). The adjustment procedure can be performed twice
