R-HLX-10X080-HF-ZF
5906675533827

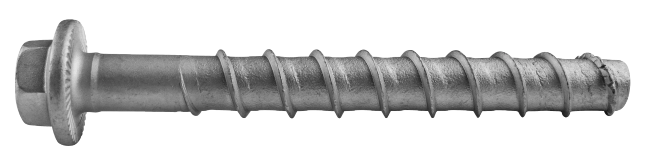

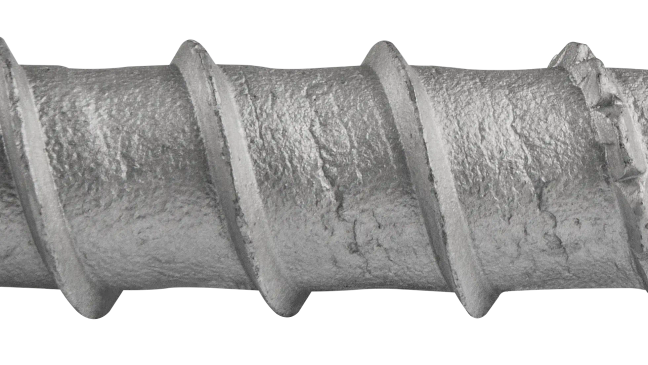

Induction hardened concrete screw anchor with hex head
Define product parameters:
Unit pack
50.00 pcs.3.16 kg
Bulk pack
50.00 pcs.3.16 kg
Pallet
12800.00 pcs.808.96 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Induction hardened concrete screw anchor with hex head
R-HLX High performed screwbolt
Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?
Approved surfaces
Diameter | Length | Coating | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|

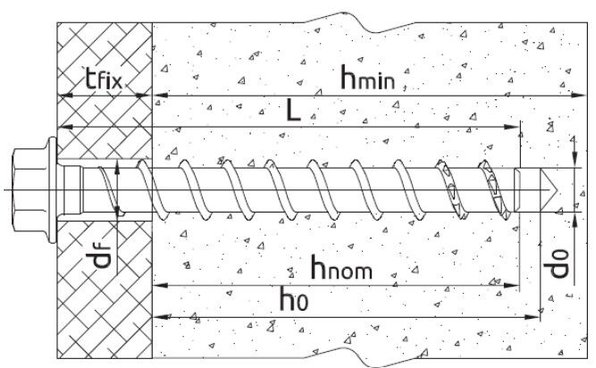

Drill the hole with a hammer drill (1a) ) to the required depth according to the table
Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..

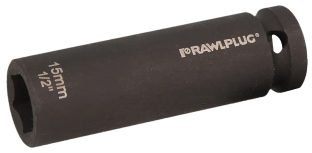

Screw the concrete screw into the hole with an impact wrench and a suitable impact socket. Tighten until the fixture is clamped to the substrate. Installation with any tangential impact wrench. Finish screwing when the screw head touches the fastened element/substrate. The screw head must not be damaged
Possibility to unscrew the fixed anchor to a maximum height of 10mm. In the adjustment process, the permissible thickness of the fastened elements (Tfix) must be observed
Finish screwing when the anchor touches the fastened element. The adjustment operation can be performed twice
