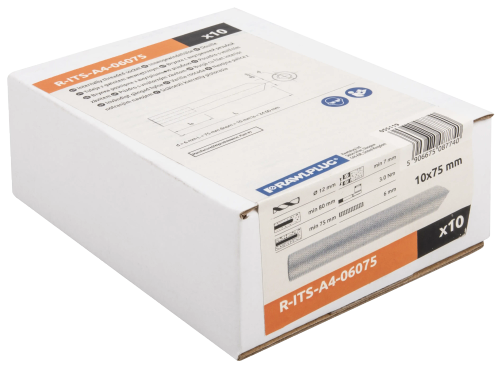

R-ITS-A4-06075
5906675087740
Internally threaded socket from stainless steel for anchoring threaded elements using a bonded anchor
Define product parameters:
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Internally threaded socket from stainless steel for anchoring threaded elements using a bonded anchor
Approved surfaces
Design Consulting
Training at the Rawlplug Academy center
Technical Support 2
EasyFix
Drill a hole to the required diameter and depth for rebar size being used.
Remove drill cuttings from the hole by using the hand pump four times. These are necessary pre-installation steps.
Clean drilled hole 4 times.
Fill with resin 70% of the depth of the hole, starting from the bottom of the hole.
Immediately insert the rebar, slowly and with slight twisting motion. Remove any excess resin around the hole before it sets and leave it undisturbed until the curing time elapses.
Place the bar in the hole and allow the setting time to elapse.
Attach fixture and tighten the nut to the required torque.
Properly installed sleeve with internal thread in the concrete base.
Screw the rod into the sleeve with internal thread placed in the hole.
