R-ITS-Z-10075
5010445606243

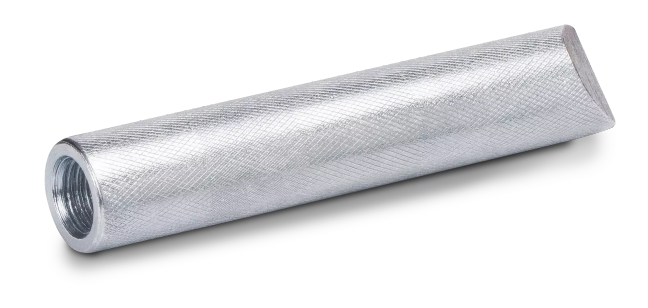

Internally threaded socket from 5.8 class steel for anchoring threaded elements using a bonded anchor
Define product parameters:
Unit pack
10.00 pcs.0.94 kg
Bulk pack
10.00 pcs.0.94 kg
Pallet
5600.00 pcs.
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Internally threaded socket from 5.8 class steel for anchoring threaded elements using a bonded anchor
Approved surfaces
Metric diameter | Length | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Drill a hole to the required diameter and depth for rebar size being used.
Remove drill cuttings from the hole by using the hand pump four times. These are necessary pre-installation steps.
Clean drilled hole 4 times.
Fill with resin 70% of the depth of the hole, starting from the bottom of the hole.
Immediately insert the rebar, slowly and with slight twisting motion. Remove any excess resin around the hole before it sets and leave it undisturbed until the curing time elapses.
After the resin has cured, remove any excess mortar from the surface of the substrate around the hole using a hammer.
Attach fixture and tighten the nut to the required torque. The applied installation torque cannot exceed Tinst,max.
Properly installed sleeve with internal thread in the concrete base.
