  2. Nylon frame fixing with collar hex head R-FF1-N-K - zinc plated 14x200 mm - label - 1 pc.

Nylon frame fixing with collar hex head R-FF1-N-K - zinc plated 14x200 mm - label - 1 pc.

Universal
New

R-P3-FF1-N-14K200

5906675489322

Universal frame fixing with collar and hex head screw for many applications

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity

Related products

Features

Universal frame fixing with collar and hex head screw for many applications

  • Collared plug for fixing of hard materials (eg. steel)
  • Plug design ensures multi-axis expansion
  • Internal plug geometry designed to fit the screw head
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D)

Product video

Rawlplug FF1 Universal Nylon Frame Fixing

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Satellite dishes

Ventilated facades

Services

Design Consulting

Design Consulting

Technical Support

Technical Support

Design tools

Design tools

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the screw.

6

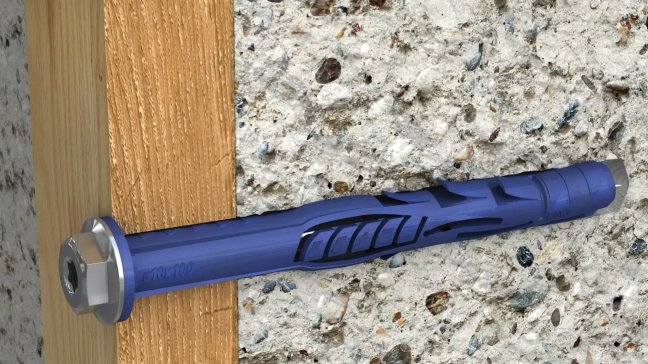

Correctly fixed pin with the longest expansion zone.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-12/0398

1488-CPR-0527/Z

DoP-12/0398 R-FF1

UKTA-0836-22/6344

UKTA-DoP-22/6344-R-FF1

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
