  2. R-PLS Plastic sleeve 15x85 mm - label - 1 pc.

Universal

R-P3-PLS-16085-10

5906675383903

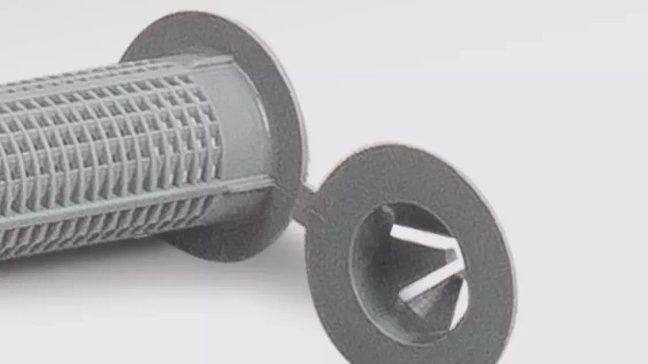

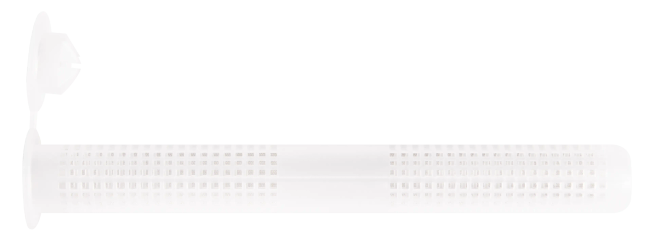

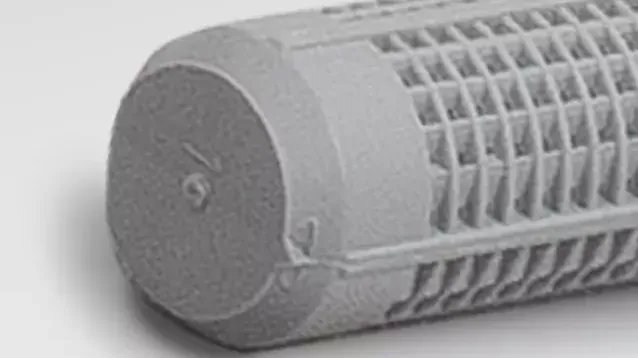

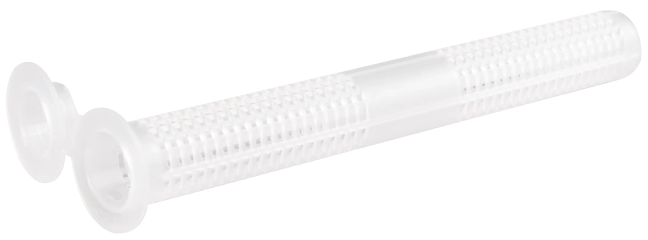

Plastic mesh sleeve for use with threaded rods in hollow substrates

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    60.00 pcs.0.34 kg

  • Bulk pack

    60.00 pcs.0.34 kg

  • Pallet

    3600.00 pcs.35.34 kg

Related products

R-KEM-II Polyester Resin Styrene Chemical Resin - plastic cartouche - 300 ml

Pump for blowing drill cuttings - plastic bag - 1 pc.

Polyester bonded anchor R-KEM-II standard - plastic cartouche - 175 ml

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

R-STUDS Threaded Rod M10 x 130mm, Hex Head, Class 5.8 - cardboard box - 10 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

R-KEM-II Polyester Resin Styrene Chemical Resin - plastic cartouche - 300 ml

Pump for blowing drill cuttings - plastic bag - 1 pc.

Polyester bonded anchor R-KEM-II standard - plastic cartouche - 175 ml

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

R-STUDS Threaded Rod M10 x 130mm, Hex Head, Class 5.8 - cardboard box - 10 pcs.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Features

Plastic mesh sleeve for use with threaded rods in hollow substrates

  • Ensures that the anchor rod is properly centred.
  • Hole cleaning is not necessary.
  • Size must be adjusted to the hole depth and diameter.
  • Suitable for variable anchor embedment depths.
  • Reduces consumption of resin.

installation_and_use_o

Hollow brick

Hollow brick

Hollow sand-lime brick

Hollow sand-lime brick

Clay block

Clay block

Ceramic hollow block

Ceramic hollow block

Hollow lightweight concrete block

Hollow lightweight concrete block

Concrete hollow floor block (eg. Teriva)

Concrete hollow floor block (eg. Teriva)

Approved surfaces

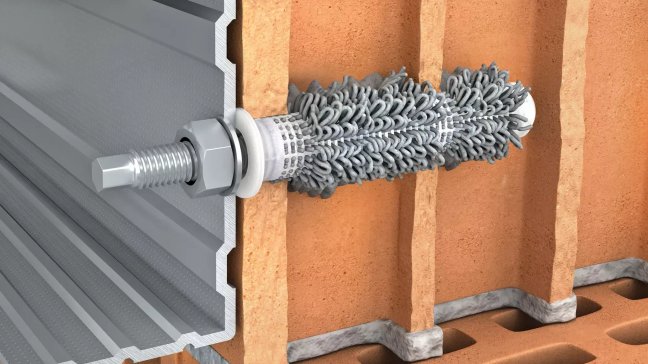

Anchoring glued in with threaded rods

Balustrades

Barriers

Blinds and awnings

Blinds / curtain rods

Scaffolding

Ventilated facades

Air conditioning / ventilation

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for pc. net

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Place the sleeve in the hole.

3

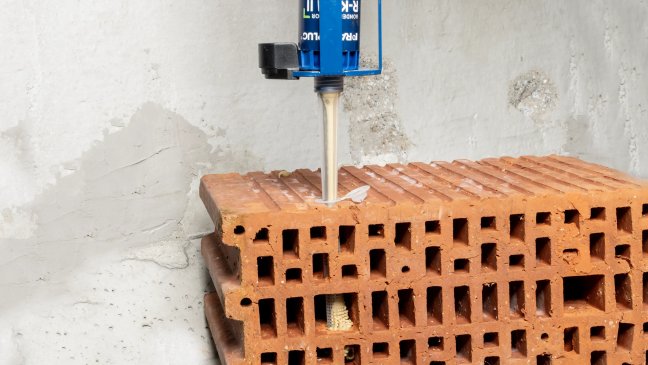

Dispense resin 100% of the hole depth and close the sleeve plug.

4

After full curing of the anchor, install the fixed element with a proper torque.

5

Item is properly attached.
