R-RBL-PF-M06/10W
5906675380582
Define product parameters:
Unit pack
50.00 pcs.1.54 kg
Bulk pack
400.00 pcs.12.61 kg
Pallet
16000.00 pcs.
This product has been withdrawn from sale.
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation

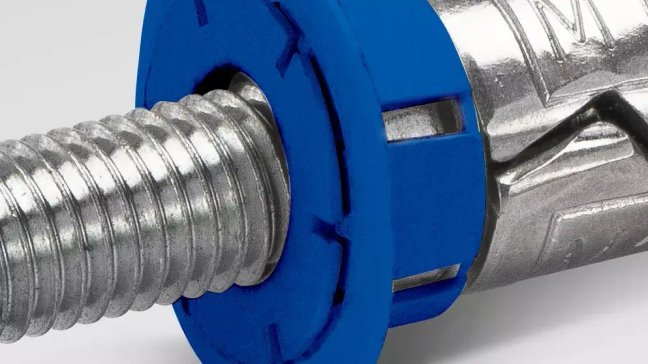

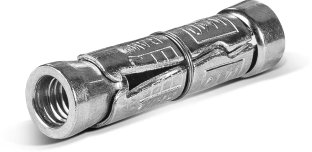

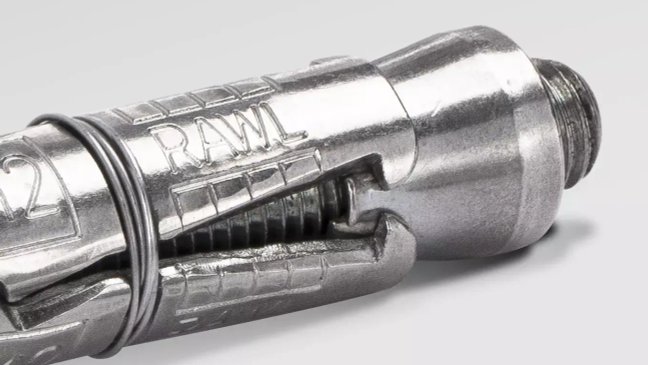

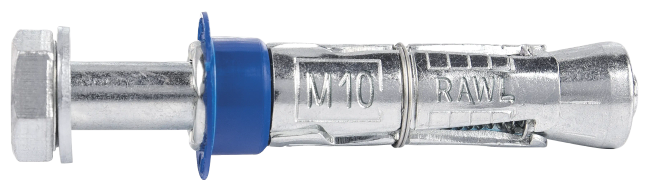

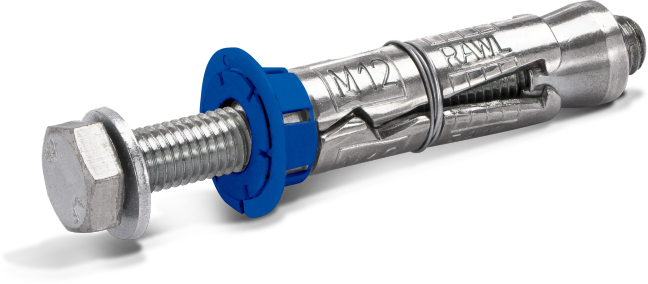

Expanding shield anchor - loose bolt with plastic ferrule version
Approved surfaces
Diameter | Maximum thickness of the mounted element | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|

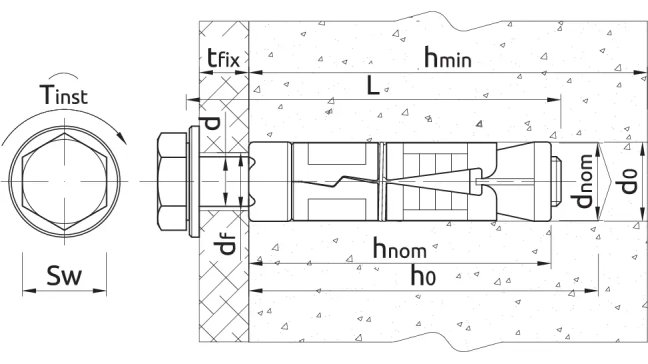

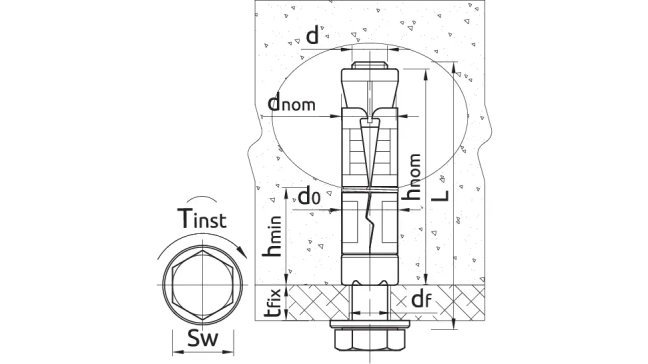

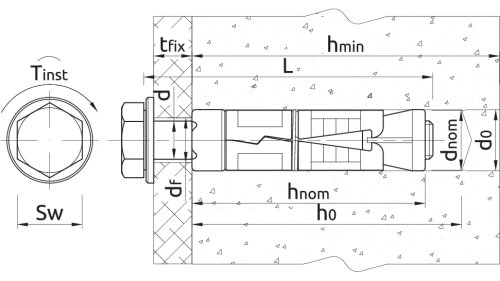

Drill a hole to the required diameter and depth for rebar size being used.
Remove pre-assembled bolt and washer. Insert shield into hole and tap home with hammer until flush with surface.
Insert the screw with the washer through the fastened element to the sleeve placed in the hole. Using a torque wrench, tighten the nut to the required torque.

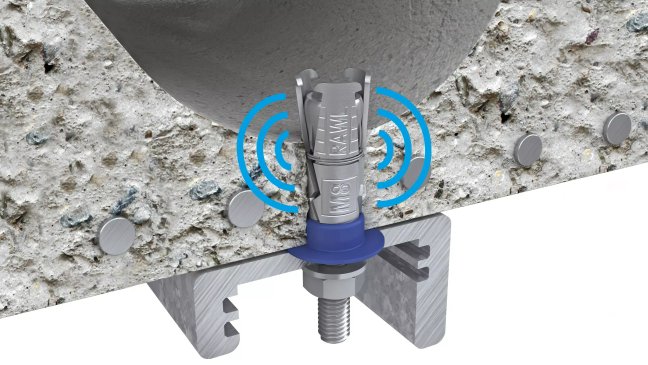

The anchor is properly fixed in the concrete base.
