  2. STYROfix adhesive for polystyrene, FR label - metal can - 750 ml

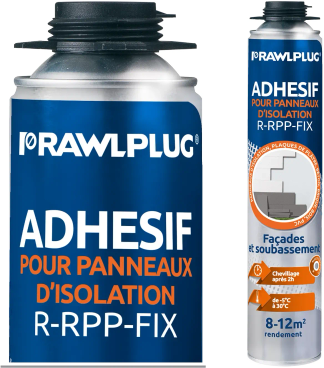

STYROfix adhesive for polystyrene, FR label - metal can - 750 ml

Universal

R-RPP-FIX-FR

5906675432083

Polyurethane adhesive with gun applicator, designed for bonding AQUA EPS and EPS boards for the insulation of facades and foundations.

Define product parameters:

Packaging and quantity

Related products

Features

Polyurethane adhesive with gun applicator, designed for bonding AQUA EPS and EPS boards for the insulation of facades and foundations.

  • Possible application at -5 ° C which significantly prolongs the construction season
  • One product for thermal insulation of facades (EPS) and foundations (XPS).
  • Fixing possible just two hours after application.
  • Portable - no requirement for access to water and electricity.
  • High strength characteristics and excellent adhesion to common construction materials
  • Highly efficient - coverage of about 8m2 facades and approx 12m2 foundations.

Substrates

Polystyrene (EPS) boards

Polystyrene (EPS) boards

XPS Extruded polystyrene insulation boards

XPS Extruded polystyrene insulation boards

Plasterboard

Plasterboard

Chipboard

Chipboard

Plywood

Plywood

Gypsum fibreboards

Gypsum fibreboards

Non-plastered pressure-resistant Insulation boards

Non-plastered pressure-resistant Insulation boards

Sandwich pannel

Sandwich pannel

Approved surfaces

Applications

Facades - thermal insulation systems

Gluing

Masonry structures

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Designing

Designing

E-learning training

E-learning training

Learn more

Installation guide

Installation manual

Installation step by step

1

Wear protective gloves. The substrate should be free from dust, dirt, lime, and grease. If the surface of the wall is dirty, it should be primed before proceeding.

2

Before applying adhesive to the polystyrene board, it is necessary to install the starter strip.

3

The optimum temperature of the can is +20°C. Application temperature from -5°C to +30°C.

4

Shake the can vigorously (approx. 30 seconds) to thoroughly mix the ingredients.

5

Screw the gun to the can. The working position during assembly should be the "upside down" position of the can.

6

When gluing polystyrene to facades, apply Styrofix with a braid with a diameter of approx. 3 cm to the perimeter of the polystyrene board, keeping a distance from its edge of approx. 2 cm and one strip along the center of the board.

7

When gluing extruded polystyrene (XPS) on foundations, apply Styrofix across the board in 4 vertical braids with a diameter of approx. 3 cm, maintaining equal spacing of 20-30 cm between the strips, leave a distance of 3 cm from the edge of the board. For boards with a width of more than 100 cm, apply more adhesive braids to the board.

8

From the application of Styrofix on the board to the application of the board to the facade or foundation, wait max. 5 minutes.

9

After gluing the board, correct the setting using a mounting patch. Correction of the board arrangement is possible only up to 10 minutes. from the moment of sticking the plate. In case of detachment of the boards from the surface, apply Styrofix again. Use additional supports in the corners until the adhesive sets, approx. 10-15 minutes.

10

After 2 hours the boards are ready for further processing: sand with sandpaper and additionally fasten with mechanical fasteners.

11

Gaps and joints between glued boards should be filled with glue.

12

Remove excess adhesive by mechanical means (e.g. with a knife). When removing the gun from the can, clean the nozzle and the gun (outside and inside) with a cleaner.
