Low-pressure gun foam for PVC, EN label - metal can - 750 ml

Universal

R-RPP-PVC

5906675285030

Rawlplug

Low-pressure, one-component polyurethane foam for PVC with gun applicator

Define product parameters:

Packaging and quantity

Related products

Features

Low-pressure, one-component polyurethane foam for PVC with gun applicator

  • Excellent adhesion to most materials and substrates used in construction.
  • Cutting time 40 min after apllication
  • Low Expansion formulation (low growth) enables applications to narrow gaps, guarantees high yield (no wastes) and eliminates the risk of frame deformation
  • Excellent sound and thermal insulation properties.
  • Resistant to mould and fungi.
  • Low-pressure formulation eliminates risk of frames deformation and ensures proper gaps filling

Substrates

Structural steel

Structural steel

Concrete

Concrete

Metal sheet & profiles

Metal sheet & profiles

Wood

Wood

Masonry

Masonry

PVC Profile

PVC Profile

Approved surfaces

Applications

Air conditioning / ventilation

Doors and windows

Facades - thermal insulation systems

Pitched roofs

Sanitary and gas installations

Wooden constructions

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Designing

Designing

E-learning training

E-learning training

Learn more

Installation guide

Installation manual

Installation step by step

1

Put on protective gloves and thoroughly clean the working surface to remove dust, dirt, and grease. Remove any frost from the working substrate. Before use, ensure that the can is at a positive temperature. The optimum can temperature is +20°C.

2

Application temperature from +5°C to +30°C.

3

Shake the can vigorously (approx. 30 seconds) to thoroughly mix the ingredients.

4

Attach the gun to the can. The working position should be "upside down".

5

Moisten the surfaces to be applied with water.

6

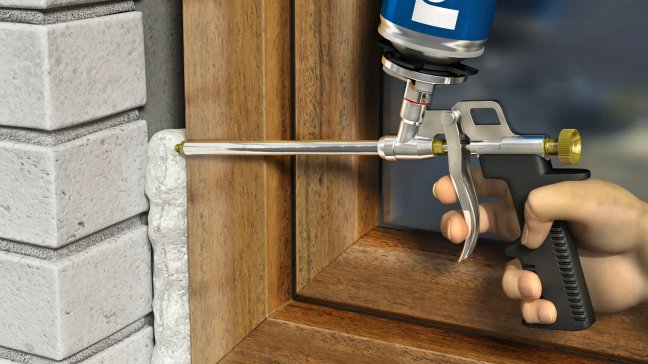

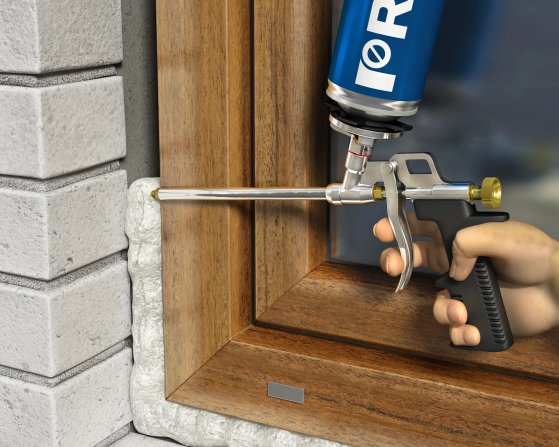

Fill the gaps from bottom to top in a zigzag pattern, alternating from one side to the other. Fill the gaps up to 60% of their depth, but not more than 3-4 cm per layer. For gaps wider than 3-4 cm, fill them in layers, after the previous layer has hardened. After applying each layer, moisten it with water using a sprayer. After full curing, trim off any excess foam with a knife and protect it from UV rays by covering it with plaster, paint, acrylic, or silicone. If there is a pause longer than five minutes, clean the applicator nozzle with a foam cleaner. When removing the gun from the can, clean both the nozzle and the gun (both externally and internally) with a cleaner.
