  2. Metric threaded rod, flat head- class 5.8 STUDS 12x130 mm - plastic bag - 5 pcs.

Metric threaded rod, flat head- class 5.8 STUDS 12x130 mm - plastic bag - 5 pcs.

Universal

R-S1-STUDS12160/5

5010445604614

Rawlplug

Threaded rod made of class 5.8 steel for use with bonded anchors

Define product parameters:

Diameter
Length
Rod end
Corrosion protection
Packaging and quantity

Related products

Features

Threaded rod made of class 5.8 steel for use with bonded anchors

  • The steel grade 5.8 provides enhanced tensile and shear strength for the rod
  • The steel grade 8.8 provides enhanced tensile and shear strength for the rod
  • Stainless steel A4 provides high corrosion resistance.
  • The higher grade of steel is required, especially when high forces are applied.
  • The galvanized coating provides sufficient protection against corrosion in dry indoor conditions.
  • The hexagonal end allows for installation using a screwdriver with capsules.
  • For use with all chemical anchors in the offer.
  • The zinc flake coating provides enhanced corrosion resistance.
  • The hot-dip galvanized coating provides increased corrosion resistance.
  • The stainless steel screw for best anti-corrosion protection and external applications.

Substrates

Cracked concrete

Cracked concrete

Non-cracked concrete

Non-cracked concrete

Clay block

Clay block

Aerated concrete

Aerated concrete

Aerated concrete block

Aerated concrete block

Brick

Brick

Hollow brick

Hollow brick

Approved surfaces

Applications

Air conditioning / ventilation

Anchoring glued in with threaded rods

Barriers

Blinds and awnings

Boilers

Ceiling mounts

Elevators and escalators

Glass facades

Pipelines

Poles and road signs

Seats in public facilities

Steel structures

Tunnels

Ventilated facades

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

EasyFix

EasyFix

Installation guide

Installation manual

Installation step by step

1

Fill hole with the required resin to the recommended fill level. (Follow the relevant instructions for the resin product).

2

Insert the threaded stud slowly and with a slight twisting motion, until the required embedment depth is reached.

3

Leave to solidify for the time required for the application.

4

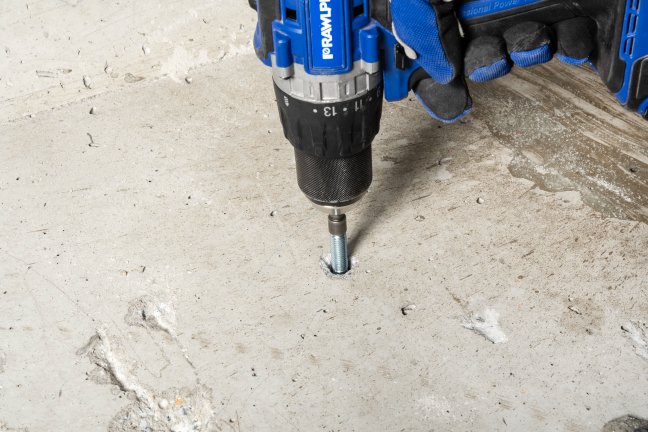

Attach fixture and tighten the nut to the required torque.

5

Item is properly attached.

Approvals and publications

Product card and catalogues

Choose product card:

Product card R-STUDS Metric Threaded Rods - Steel Class 1.4529 HCR, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class A4

Product card R-STUDS Metric Threaded Rods - Steel Class A4, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class A2, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 10.9

Product card R-STUDS Metric Threaded Rods - Steel Class 10.9, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 8.8

Product card R-STUDS Metric Threaded Rods - Steel Class 8.8, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 8.8, Hot Dip Galvanized

Product card R-STUDS Metric Threaded Rods - Steel Class 8.8, Hot Dip Galvanized, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 8.8, Zinc Flake, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 5.8, Hot Dip Galvanized

Product card R-STUDS Metric Threaded Rods - Steel Class 5.8, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 5.8, Hot Dip Galvanized, Flat Head

Product card R-STUDS Metric Threaded Rods - Steel Class 5.8, Zinc Flake

Product card R-STUDS Metric Threaded Rods - Steel Class 5.8, Zinc Flake, Flat Head
